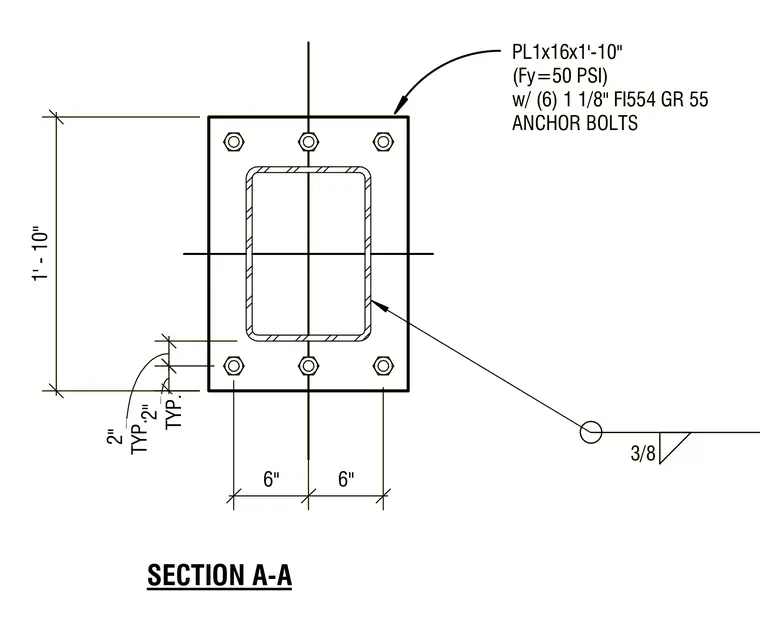

A base plate connection utilizes a one-inch-thick steel plate measuring 16 inches by 1 foot 10 inches with a yield strength of 50 PSI. The assembly is secured by six one-and-one-eighth-inch F1554 Grade 55 anchor bolts arranged with typical edge and center spacing dimensions. A three-eighths-inch fillet weld connects the steel column profile to the base plate.
TYP. 2" 6" 6" 1' - 10" PL1x16x1'-10" (Fy=50 PSI) w/ (6) 1 1/8" FI554 GR 55 ANCHOR BOLTS 3/8 TYP. 2" SECTION A-A TYP. 2" 6" 6" 1' - 10" PL1x16x1'-10" (Fy=50 PSI) w/ (6) 1 1/8" FI554 GR 55 ANCHOR BOLTS 3/8 TYP. 2" SECTION A-A
