Structural · S-9W3DH

Buckling-Restrained Braced Frame Single Brace-Beam-Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

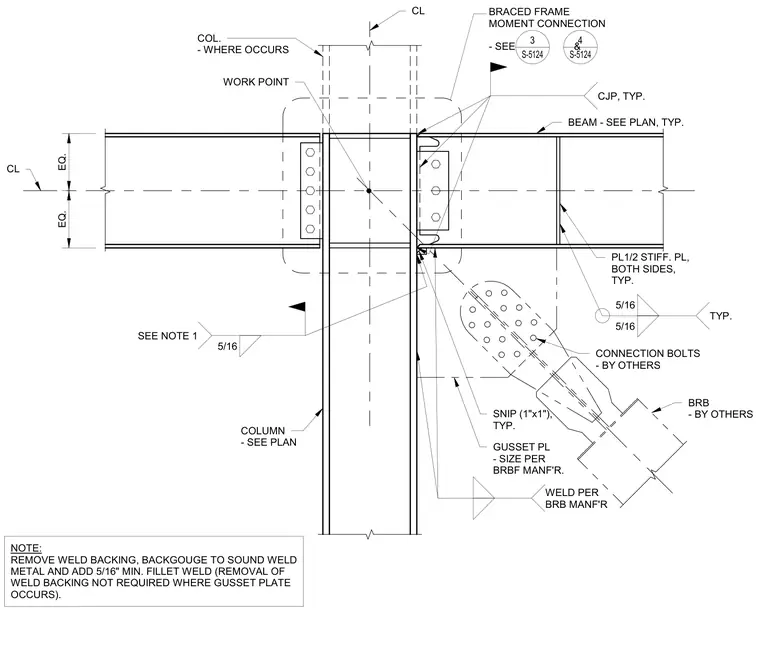

This connection details a buckling-restrained braced frame assembly framing into a steel column and beam. The gusset plate is sized per the buckling-restrained brace manufacturer and connected with bolts provided by others. Complete joint penetration welds and five-sixteenths inch fillet welds tie the gusset plate and beam-column moment connection together, including one-inch by one-inch typical snips. Half-inch thick stiffener plates are welded to both sides of the beam web. Weld backing is removed, backgouged to sound weld metal, and supplemented with a five-sixteenths inch minimum fillet weld where required.
