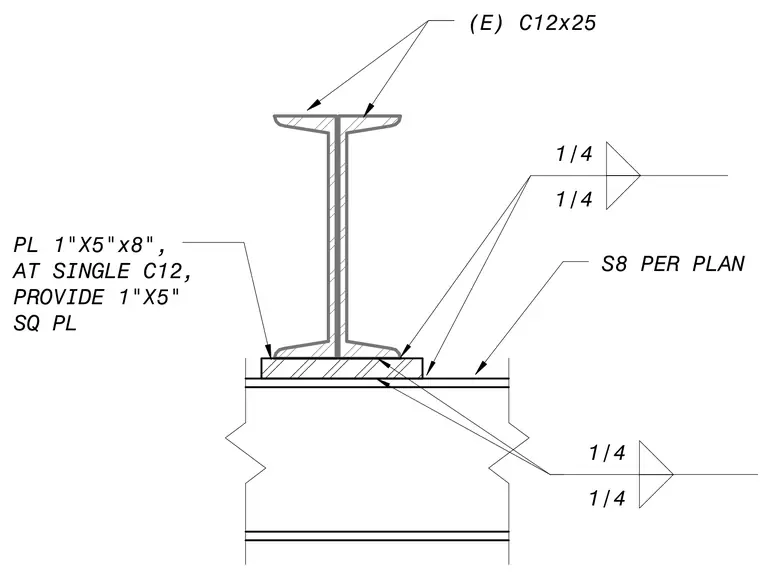

An existing C12x25 channel member connects to a structural support per plan using a 1-inch by 5-inch by 8-inch steel plate. At single channel conditions, a 1-inch by 5-inch square plate is provided. Fillet welds of 1/4-inch size secure the assembly as indicated.
(E) C12x25 1/4 1/4 S8 PER PLAN PL 1"X5"x8", AT SINGLE C12, PROVIDE 1"X5" SQ PL 1/4 1/4
