Structural · S-9VZQE

Edge Of Slab And Face Of Grade

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

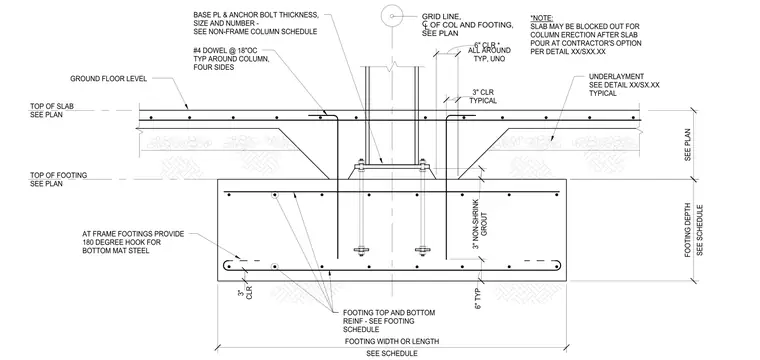

A steel column connects to a reinforced concrete footing via a base plate and anchor bolts set over three inches of non-shrink grout. Number four dowels at eighteen inches on center typical are placed around the column on four sides, with footing top and bottom reinforcement sized per the footing schedule. A concrete slab-on-grade sits above the footing with three inches typical clearance, and the slab may be blocked out for column erection. Frame footings provide one hundred eighty degree hooks for bottom mat steel, with three inch cover typical.
