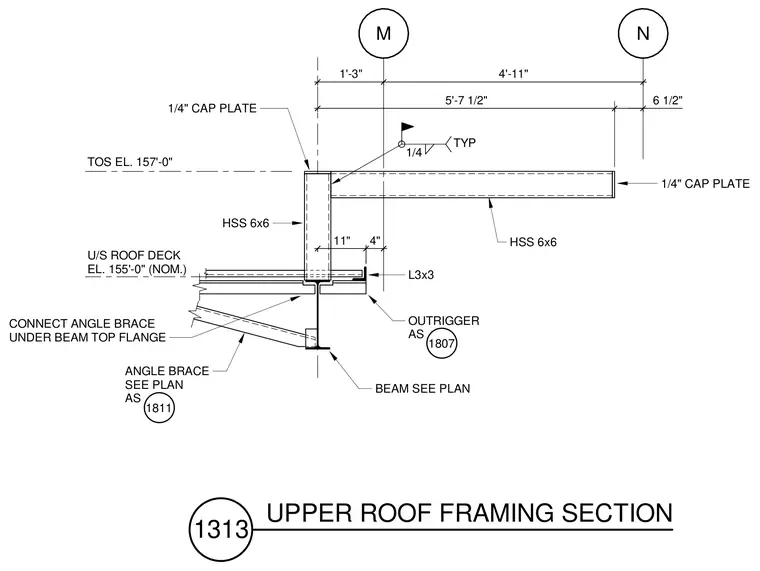

An HSS 6x6 member frames above a structural steel beam sized per plan, establishing a top of steel elevation of 157'-0" at the top cap plate. The underside of the roof deck sits at a nominal elevation of 155'-0". A 1/4-inch cap plate tops the vertical and horizontal hollow structural sections, joined with typical one-quarter-inch fillet welds. An L3x3 angle and outrigger connect the framing at the beam top flange, supplemented by an angle brace detailed per plan connected underneath the beam top flange.
M N U/S ROOF DECK EL. 155'-0" (NOM.) TOS EL. 157'-0" 1'-3" 4'-11" 5'-7 1/2" 6 1/2" 11" 4" 1/4" CAP PLATE HSS 6x6 HSS 6x6 1/4" CAP PLATE L3x3 BEAM SEE PLAN ANGLE BRACE SEE PLAN AS 1811 1/4 TYP CONNECT ANGLE BRACE UNDER BEAM TOP FLANGE OUTRIGGER AS 1807 1313 UPPER ROOF FRAMING SECTION
