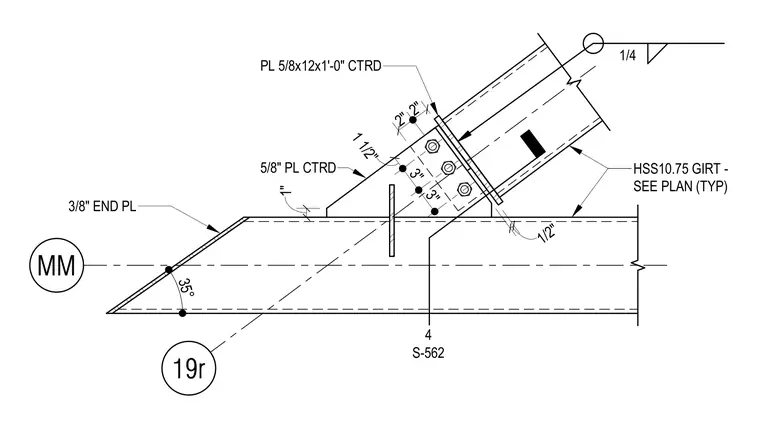

An HSS10.75 girt is framed into a supporting assembly using a 3/8-inch end plate welded with a quarter-inch fillet weld. A 5/8-inch centered plate and a 5/8-inch by 12-inch by 1-foot-0-inch centered plate provide gusset reinforcement at the connection. The member aligns along grid line MM at a 35-degree angle.
1 1/2" 3" 3" 2" 2" 1/2" 1" 1/4 PL 5/8x12x1'-0" CTRD HSS10.75 GIRT - SEE PLAN (TYP) 19r MM 35° 3/8" END PL 4 S-562 5/8" PL CTRD
