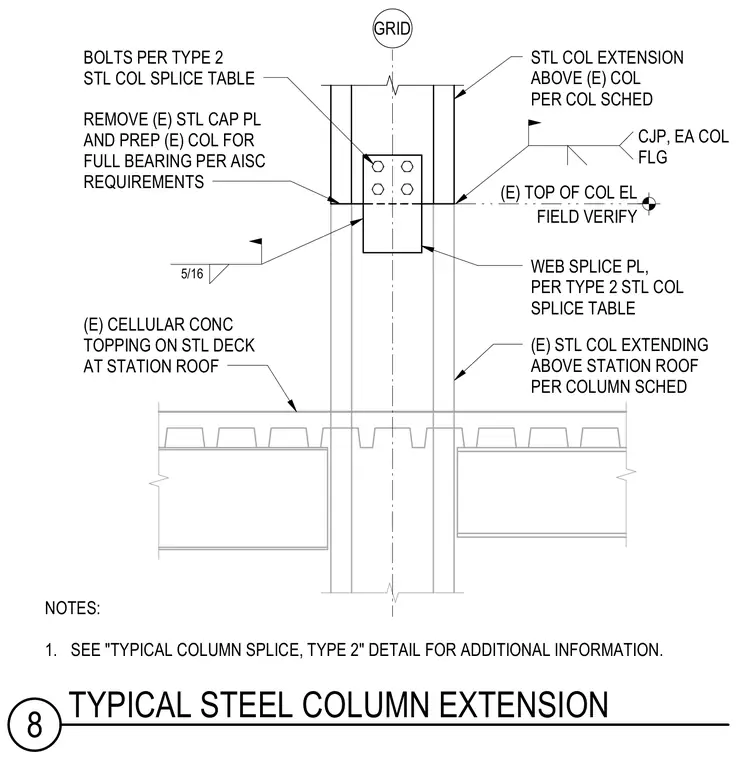

An existing steel column extends above the station roof, which consists of cellular concrete topping on steel deck. The existing steel cap plate is removed and the column end is prepared for full bearing per American Institute of Steel Construction requirements. A web splice plate and bolts are installed per the type 2 steel column splice table. Flanges are joined with complete-joint-penetration welds at each column flange, supplemented by five-sixteenth-inch fillet welds.
GRID FIELD VERIFY (E) TOP OF COL EL STL COL EXTENSION ABOVE (E) COL PER COL SCHED REMOVE (E) STL CAP PL AND PREP (E) COL FOR FULL BEARING PER AISC REQUIREMENTS (E) STL COL EXTENDING ABOVE STATION ROOF PER COLUMN SCHED (E) CELLULAR CONC TOPPING ON STL DECK AT STATION ROOF WEB SPLICE PL, PER TYPE 2 STL COL SPLICE TABLE CJP, EA COL FLG NOTES: 1. SEE "TYPICAL COLUMN SPLICE, TYPE 2" DETAIL FOR ADDITIONAL INFORMATION. BOLTS PER TYPE 2 STL COL SPLICE TABLE 5/16 8 TYPICAL STEEL COLUMN EXTENSION
