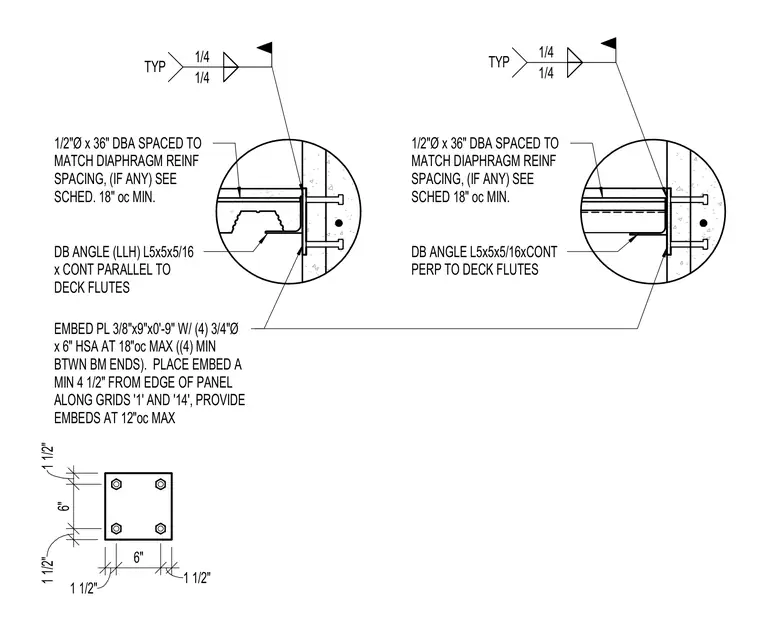

Metal deck support connections between beams utilize a continuous five-by-five by five-sixteenths inch angle oriented parallel and perpendicular to the deck flutes. The deck support angle connects to a three-eighths by nine by nine-inch embed plate featuring four three-quarter-inch diameter by six-inch heavy stud anchors spaced at a maximum of eighteen inches on center. Diaphragm reinforcing is tied using half-inch diameter by thirty-six-inch deformed bar anchors spaced to match the diaphragm reinforcement schedule at a minimum of eighteen inches on center. Fillet welds of one-quarter inch size join the assembly together. The embed plate is placed a minimum of four and one-half inches from the edge of the panel along specified grid lines, with maximum spacing adjusted to twelve inches on center.
1 1/2" 6" 1 1/2" 1 1/2" 6" 1 1/2" EMBED PL 3/8"x9"x0'-9" W/ (4) 3/4"Ø x 6" HSA AT 18"oc MAX ((4) MIN BTWN BM ENDS). PLACE EMBED A MIN 4 1/2" FROM EDGE OF PANEL ALONG GRIDS '1' AND '14', PROVIDE EMBEDS AT 12"oc MAX DB ANGLE (LLH) L5x5x5/16 x CONT PARALLEL TO DECK FLUTES 1/4 1/4 TYP 1/2"Ø x 36" DBA SPACED TO MATCH DIAPHRAGM REINF SPACING, (IF ANY) SEE SCHED. 18" oc MIN. DB ANGLE L5x5x5/16xCONT PERP TO DECK FLUTES 1/4 1/4 TYP 1/2"Ø x 36" DBA SPACED TO MATCH DIAPHRAGM REINF SPACING, (IF ANY) SEE SCHED 18" oc MIN.
