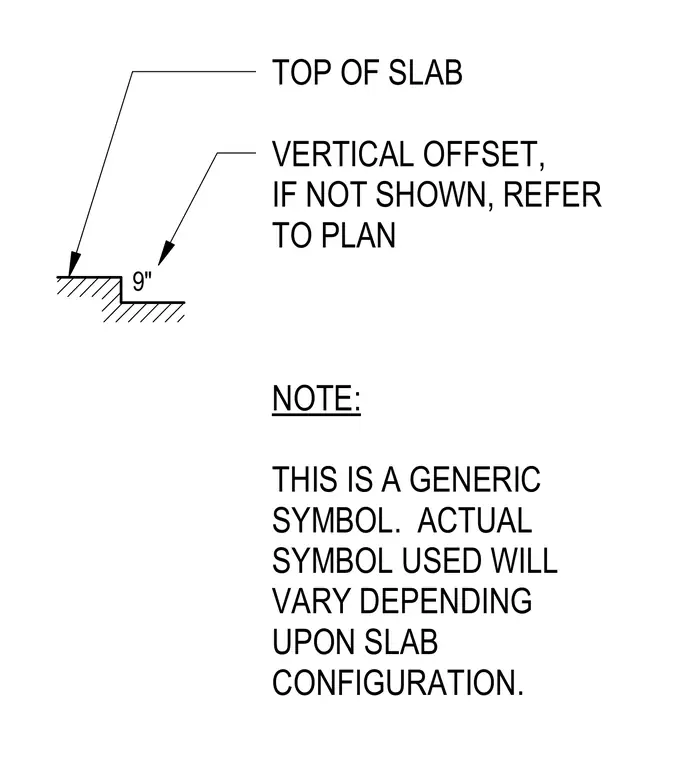

A concrete slab step indicates a vertical elevation change of nine inches. The drawing serves as a generic symbol whose actual configuration varies according to the specific slab layout. Unspecified vertical offsets require coordination with the floor plans.
NOTE: THIS IS A GENERIC SYMBOL. ACTUAL SYMBOL USED WILL VARY DEPENDING UPON SLAB CONFIGURATION. TOP OF SLAB VERTICAL OFFSET, IF NOT SHOWN, REFER TO PLAN 9"
