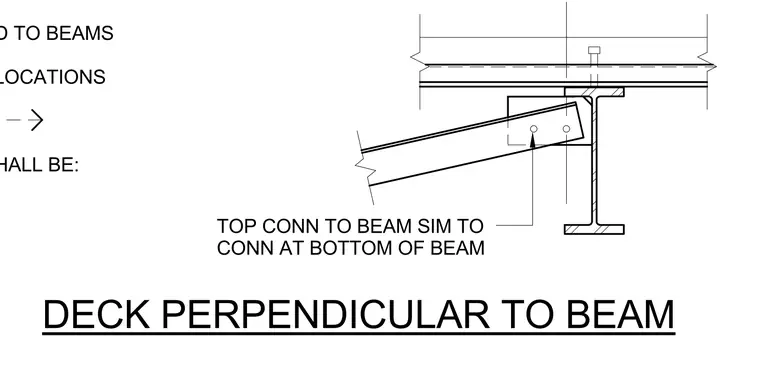

An angle brace connects to a structural steel beam below a perpendicular metal deck assembly. A 3/8-inch plate may be field welded to the beams as specified. The top connection to the beam is similar to the connection at the bottom of the beam. Brace locations are coordinated per the framing plan.
DECK PERPENDICULAR TO BEAM TOP CONN TO BEAM SIM TO CONN AT BOTTOM OF BEAM 1. 3/8" PLATE MAY BE FIELD WELDED TO BEAMS 2. SEE FRAMING PLAN FOR BRACE LOCATIONS 3. UNO ON PLANS, ANGLE BRACE SHALL BE:
