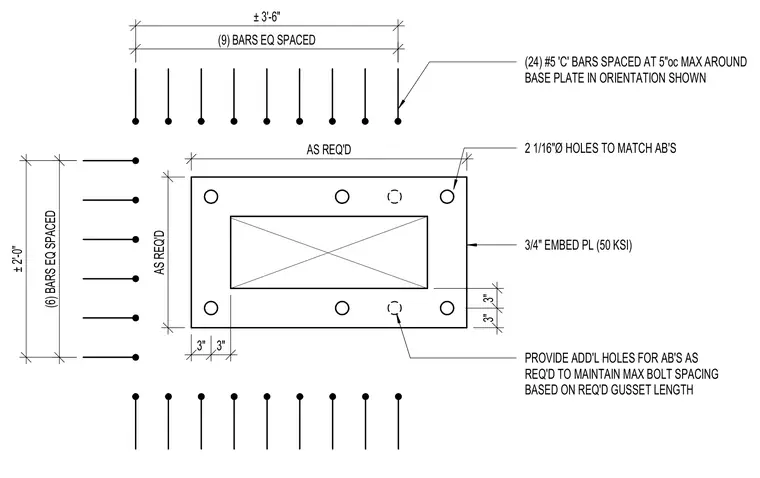

A structural brace frame anchor embed plate includes designated anchor bolt hole layouts and perimeter reinforcing steel. The three-quarter-inch thick embed plate of fifty KSI steel features two-inch diameter holes sized to match anchor bolts, with additional holes provided as required to maintain maximum bolt spacing based on the gusset length. The surrounding concrete is reinforced with twenty-four number five C-bars spaced at five inches on-center maximum around the base plate. Additional reinforcement includes groups of nine and six evenly spaced bars spanning approximately three feet six inches and two feet respectively.
3" 3" 3" 3" 2 1/16"Ø HOLES TO MATCH AB'S 3/4" EMBED PL (50 KSI) (9) BARS EQ SPACED (6) BARS EQ SPACED AS REQ'D (24) #5 'C' BARS SPACED AT 5"oc MAX AROUND BASE PLATE IN ORIENTATION SHOWN ± 2'-0" ± 3'-6" AS REQ'D PROVIDE ADD'L HOLES FOR AB'S AS REQ'D TO MAINTAIN MAX BOLT SPACING BASED ON REQ'D GUSSET LENGTH
