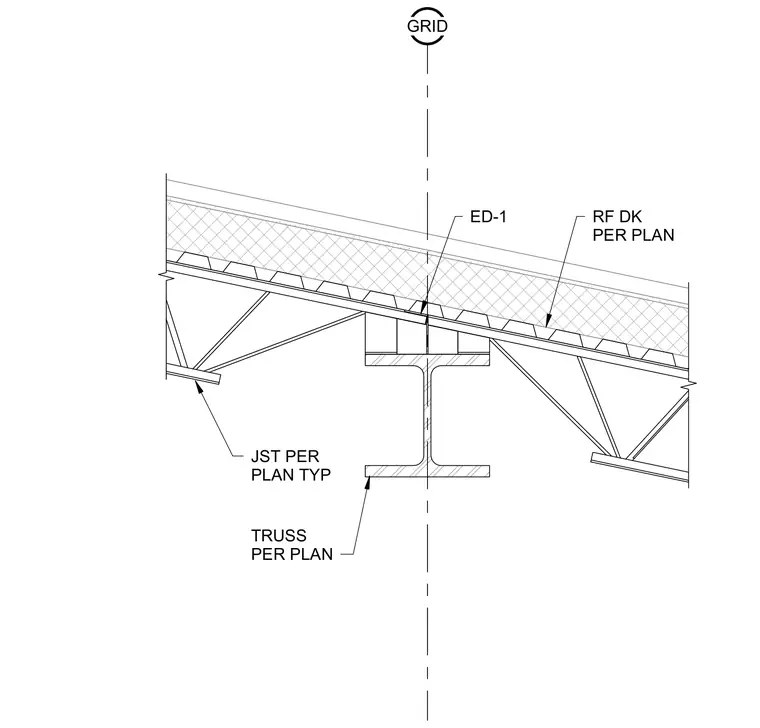

Roof joists and roof deck bear upon a structural steel beam aligned with a grid line. The steel deck and joists are sized per plan, with specific edge details designated as ED-1. Additional typical joists are located as indicated on the framing plan.
