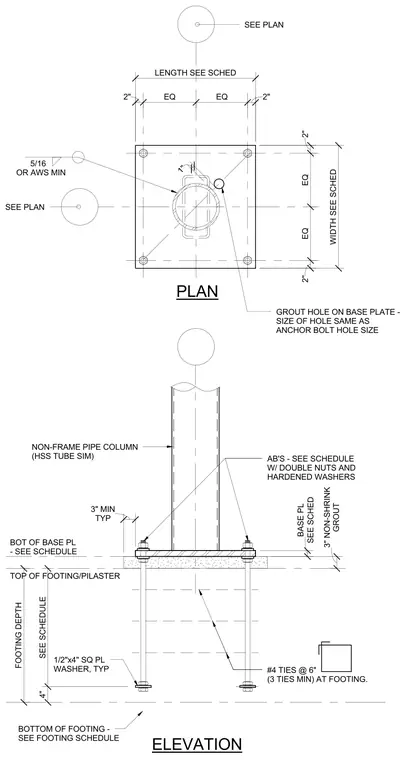

A non-frame pipe column, similar to a hollow structural section tube, welds to a steel base plate with a 5/16-inch or American Welding Society minimum fillet weld. The base plate rests on three inches of non-shrink grout above the top of the concrete footing or pilaster. Anchor bolts sized per schedule secure the base plate using double nuts and hardened washers, paired with one-half-inch by four-inch square plate washers embedded near the bottom of the footing. Number 4 ties spaced at six inches on center, with a minimum of three ties, reinforce the footing.
PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE BOT OF BASE PL - SEE SCHEDULE TOP OF FOOTING/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF FOOTING - SEE FOOTING SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT FOOTING. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" 4" SEE SCHEDULE SEE PLAN SEE PLAN 5/16
