Structural · S-9TC4S

Built-Up Column Splice

Materials

weld

Elements

Columns

Connections

Welded Connection Rebar Splice / Development

About this detail

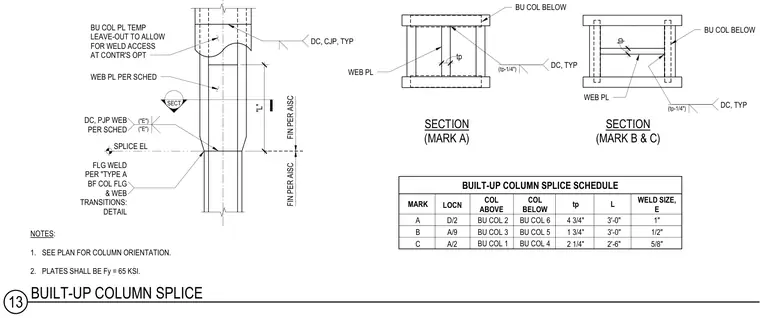

Welded built-up column splice detailing transition plates, complete joint penetration flange welds, and partial joint penetration web welds per schedule. A temporary plate leave-out is provided to allow for weld access at the contractor's option, with all plates specified at a yield strength of 65 KSI. Finishes are executed per AISC standards with dimensions and sizes correlated through an included built-up column splice schedule for marks A, B, and C.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
