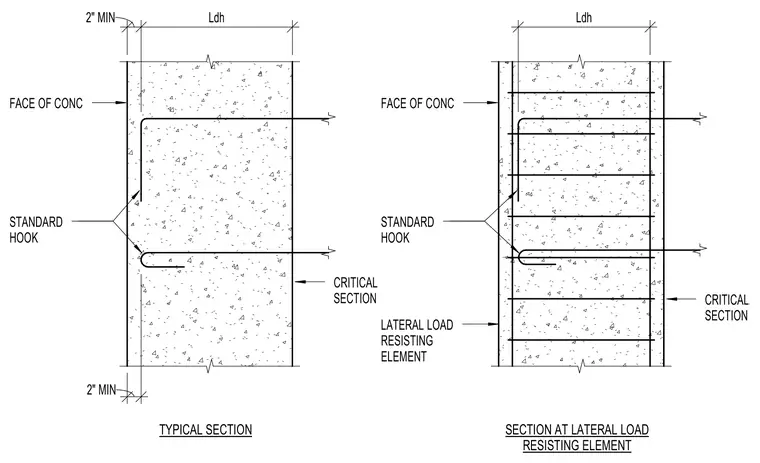

Standard hook development length requirements within a concrete lateral load resisting element. The critical section is at the face of the concrete and requires a minimum two-inch clearance. Reinforcing bars terminate in standard hooks extending the development length designated as Ldh. Both a typical section and a section at a lateral load resisting element are provided for comparison.
TYPICAL SECTION SECTION AT LATERAL LOAD RESISTING ELEMENT 2" MIN 2" MIN Ldh FACE OF CONC STANDARD HOOK CRITICAL SECTION Ldh CRITICAL SECTION FACE OF CONC STANDARD HOOK LATERAL LOAD RESISTING ELEMENT
