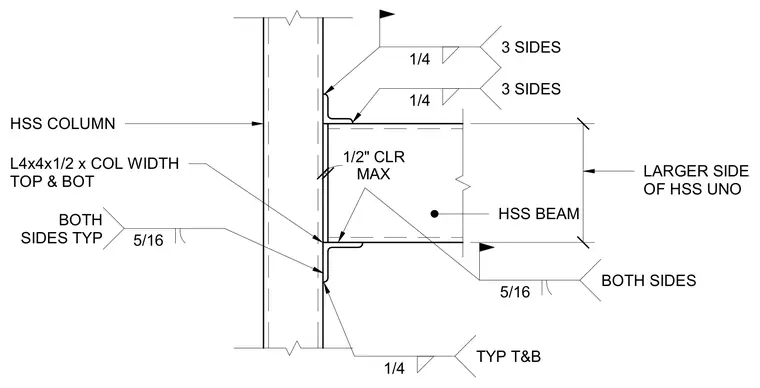

An HSS beam frames into an HSS column using top and bottom structural angles spanning the column width. The connection is detailed with a maximum one-half inch clearance between the beam end and the column face on the larger side of the HSS unless noted otherwise. Five-sixteenth-inch fillet welds connect the angles to the column on both sides typically. One-quarter-inch fillet welds secure the angles to the top and bottom of the HSS beam flange on three sides typically.
L4x4x1/2 x COL WIDTH TOP & BOT HSS COLUMN LARGER SIDE OF HSS UNO HSS BEAM 5/16 BOTH SIDES TYP 1/4 3 SIDES 5/16 BOTH SIDES 1/4 3 SIDES MAX 1/2" CLR 1/4 TYP T&B .
