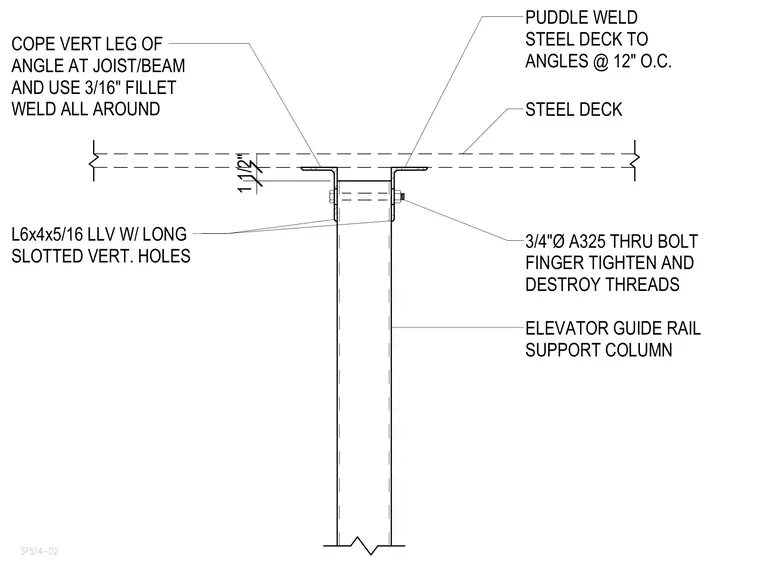

An elevator guide rail support column connects to the steel deck via an L6x4x5/16 angle with long slotted vertical holes. The vertical leg of the angle is coped at the joist or beam and secured with a three-sixteenth-inch fillet weld all around. A three-quarter-inch diameter A325 through bolt fastens the assembly finger-tight with threads destroyed. The steel deck is puddle welded to the angles at twelve inches on center with a one-and-a-half-inch offset.
SF514-D2 STEEL DECK ELEVATOR GUIDE RAIL SUPPORT COLUMN L6x4x5/16 LLV W/ LONG SLOTTED VERT. HOLES 3/4"Ø A325 THRU BOLT FINGER TIGHTEN AND DESTROY THREADS COPE VERT LEG OF ANGLE AT JOIST/BEAM AND USE 3/16" FILLET WELD ALL AROUND PUDDLE WELD STEEL DECK TO ANGLES @ 12" O.C. 1 1/2"
