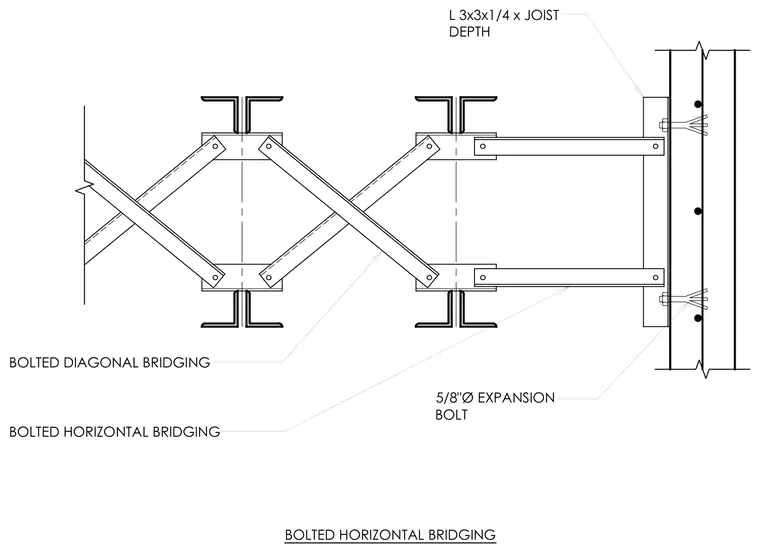

Bolted horizontal bridging and bolted diagonal bridging span between open-web steel joists or beams to provide lateral stability. The bridging members connect to a vertical angle section sized L 3x3x1/4 by the joist depth. This boundary angle secures to a structural support using five-eighths-inch diameter expansion bolts.
5/8"Ø EXPANSION BOLT L 3x3x1/4 x JOIST DEPTH BOLTED DIAGONAL BRIDGING BOLTED HORIZONTAL BRIDGING BOLTED HORIZONTAL BRIDGING
