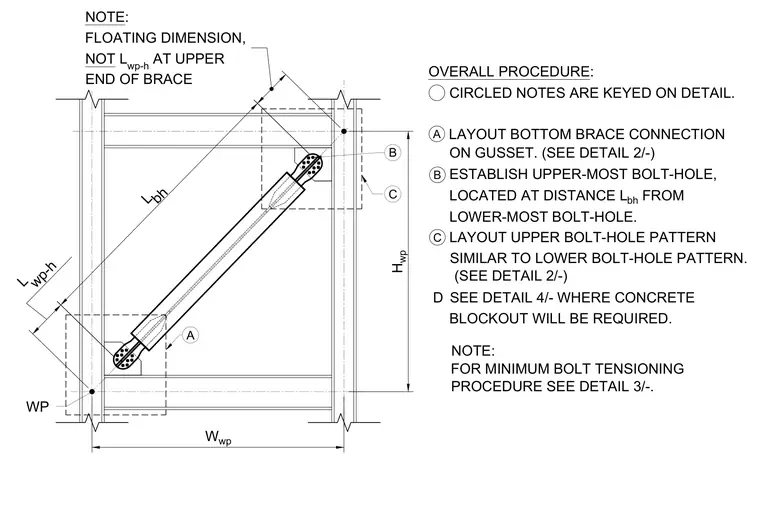

This diagram outlines the sequential layout procedure for a bolted gusset plate connection on a structural brace. The procedure establishes the lowest bolt-hole pattern on the bottom brace connection and locates the upper-most bolt-hole at a specified distance Lbh from the lower connection. A floating dimension applies to the upper end of the brace rather than the work point dimension Lwp-h. Additional notes reference specific details for bolt tensioning procedures and required concrete blockouts.
CIRCLED NOTES ARE KEYED ON DETAIL. A LAYOUT BOTTOM BRACE CONNECTION OVERALL PROCEDURE: B ESTABLISH UPPER-MOST BOLT-HOLE, C LAYOUT UPPER BOLT-HOLE PATTERN FOR MINIMUM BOLT TENSIONING LOCATED AT DISTANCE L bh FROM SIMILAR TO LOWER BOLT-HOLE PATTERN. PROCEDURE SEE DETAIL 3/-. ON GUSSET. (SEE DETAIL 2/-) WP L bh L wp-h NOTE: FLOATING DIMENSION, NOT L wp-h AT UPPER END OF BRACE B W wp H wp LOWER-MOST BOLT-HOLE. (SEE DETAIL 2/-) C A NOTE: SEE DETAIL 4/- WHERE CONCRETE BLOCKOUT WILL BE REQUIRED. D
