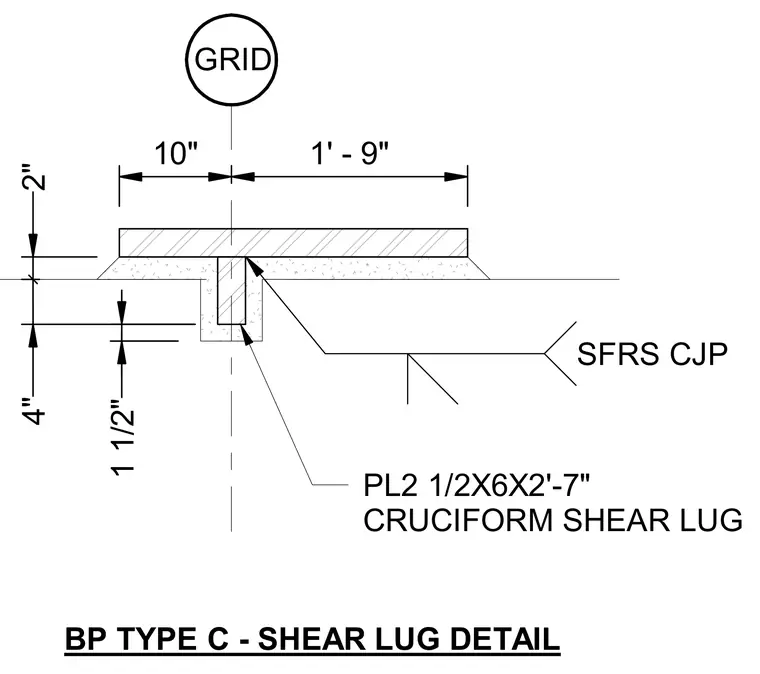

A cruciform shear lug measuring 2 1/2 inches by 6 inches by 2 feet 7 inches is embedded into the foundation and welded to the base plate with a complete joint penetration weld. The assembly features a two-inch vertical clearance above the concrete and a four-inch embedment depth for the shear lug. Dimensions locate the connection relative to the grid line with a ten-inch and one-foot nine-inch offset.
GRID PL2 1/2X6X2'-7" CRUCIFORM SHEAR LUG 4" 2" SFRS CJP BP TYPE C - SHEAR LUG DETAIL 10" 1' - 9" 1 1/2"
