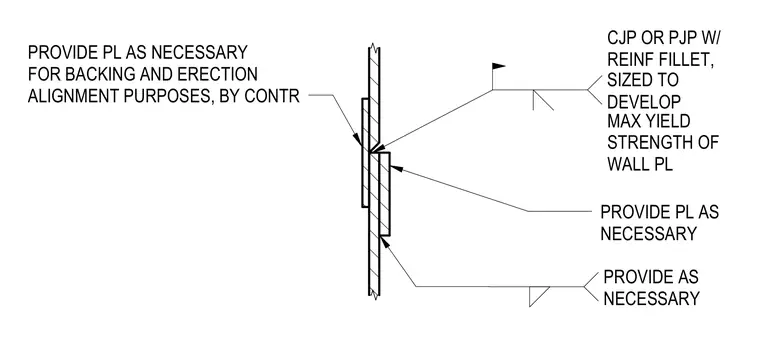

Two vertical steel wall plates connect end-to-end with a complete-joint-penetration or partial-joint-penetration groove weld featuring a reinforcing fillet weld sized to develop the maximum yield strength of the wall plate. Additional backing plates are provided as necessary for erection alignment purposes by the contractor. Supplementary plates are positioned across the joint on both sides as required.
PROVIDE AS NECESSARY PROVIDE PL AS NECESSARY FOR BACKING AND ERECTION ALIGNMENT PURPOSES, BY CONTR SIZED TO DEVELOP PROVIDE PL AS NECESSARY MAX YIELD STRENGTH OF WALL PL CJP OR PJP W/ REINF FILLET,
