A two-sided steel connection frames beams or channels into a hollow structural section post or hanger. A continuous shear tab extends through a slotted tube in the hollow structural section column, secured with bolts sized per the non-moment beam connection schedule. A one-half-inch cap plate is welded to the top of the hollow structural section post where required, utilizing quarter-inch fillet welds and perimeter sealing.

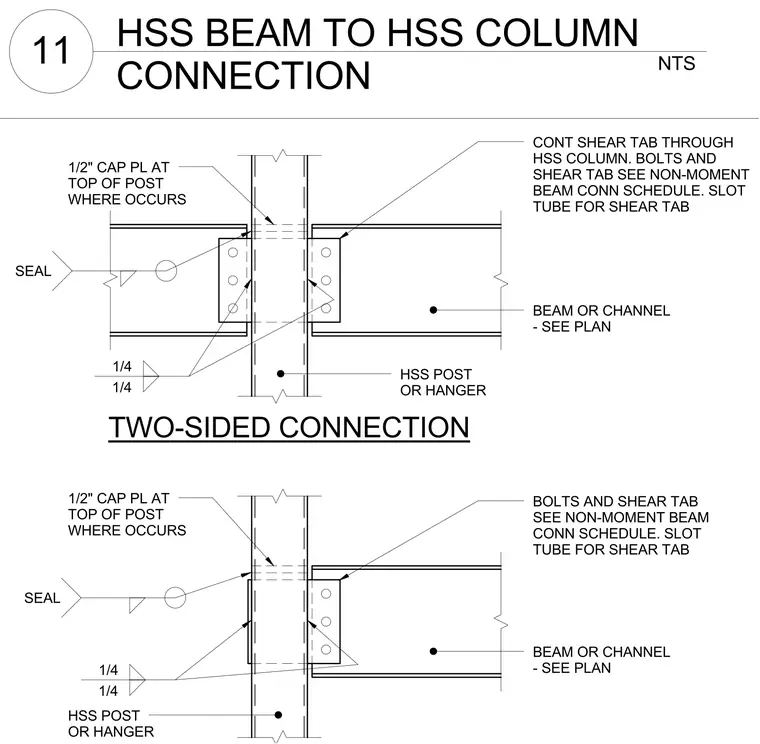

1/2" CAP PL AT TOP OF POST WHERE OCCURS BEAM OR CHANNEL - SEE PLAN CONT SHEAR TAB THROUGH HSS COLUMN. BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB 1/4 1/4 SEAL BEAM OR CHANNEL - SEE PLAN BOLTS AND SHEAR TAB SEE NON-MOMENT BEAM CONN SCHEDULE. SLOT TUBE FOR SHEAR TAB HSS POST OR HANGER 1/4 1/4 SEAL TWO-SIDED CONNECTION HSS POST OR HANGER 1/2" CAP PL AT TOP OF POST WHERE OCCURS NTS 11 HSS BEAM TO HSS COLUMN CONNECTION
