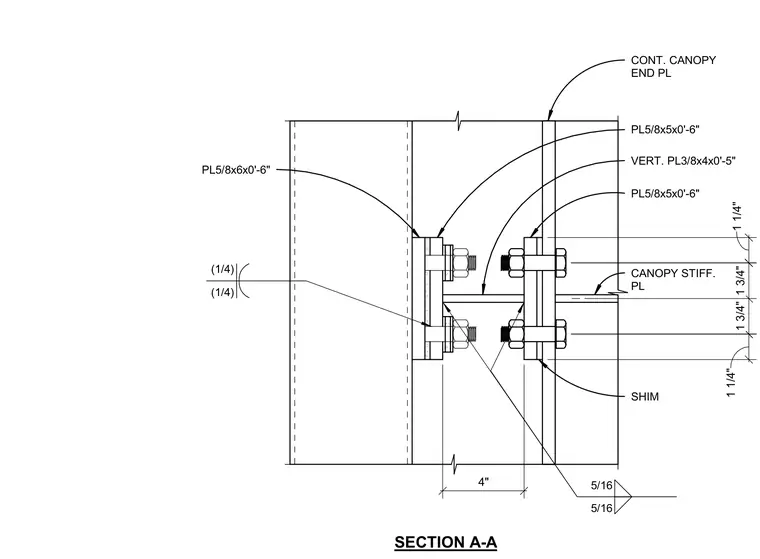

A continuous canopy end plate connects to a vertical steel plate measuring 3/8 inch by 4 inches by 0 feet 5 inches, separated by a thermal break configuration. The assembly utilizes 5/8 inch by 5 inch by 0 feet 6 inch plates, a shim plate measuring 5/8 inch by 6 inches by 0 feet 6 inches, and a canopy stiffener plate. Fillet welds of 1/4 inch and 5/16 inch sizes secure the plate elements. High-strength bolts with nuts secure the connection across a 4-inch spacing.
4" 1 1/4" 1 1/4" (1/4) (1/4) 5/16 5/16 SHIM PL5/8x6x0'-6" CONT. CANOPY END PL VERT. PL3/8x4x0'-5" SECTION A-A CANOPY STIFF. PL 1 3/4" 1 3/4" PL5/8x5x0'-6" PL5/8x5x0'-6"
