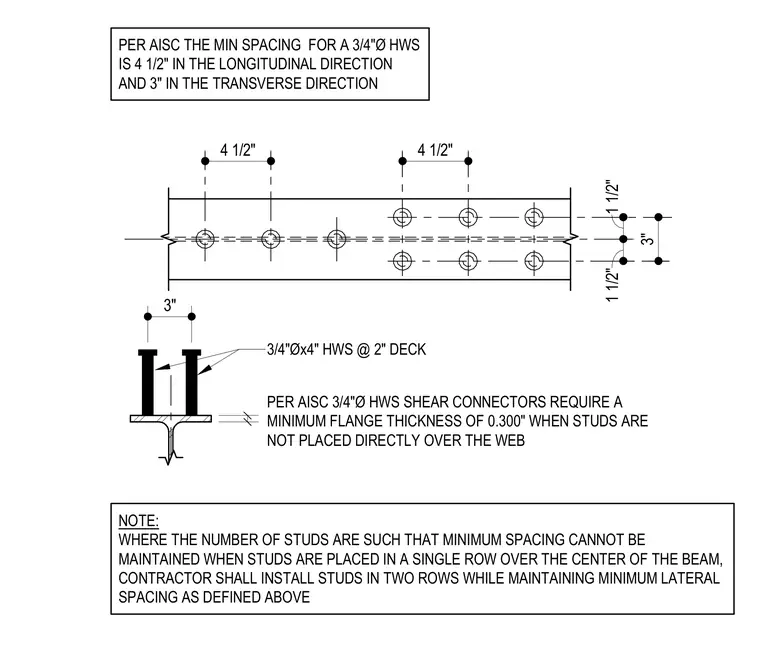

Three-quarter-inch diameter by four-inch headed welded stud shear connectors are installed on a two-inch deck. The plan and section views specify a minimum longitudinal spacing of four and one-half inches and a minimum transverse spacing of three inches per AISC guidelines. When the required number of studs cannot be maintained in a single row over the center of the beam, the contractor must install studs in two rows while maintaining the specified minimum lateral spacing. Per AISC requirements, shear connectors require a minimum flange thickness of zero point three hundred inches when studs are not placed directly over the web.
3" NOTE: WHERE THE NUMBER OF STUDS ARE SUCH THAT MINIMUM SPACING CANNOT BE MAINTAINED WHEN STUDS ARE PLACED IN A SINGLE ROW OVER THE CENTER OF THE BEAM, CONTRACTOR SHALL INSTALL STUDS IN TWO ROWS WHILE MAINTAINING MINIMUM LATERAL SPACING AS DEFINED ABOVE PER AISC THE MIN SPACING FOR A 3/4"Ø HWS IS 4 1/2" IN THE LONGITUDINAL DIRECTION AND 3" IN THE TRANSVERSE DIRECTION PER AISC 3/4"Ø HWS SHEAR CONNECTORS REQUIRE A MINIMUM FLANGE THICKNESS OF 0.300" WHEN STUDS ARE NOT PLACED DIRECTLY OVER THE WEB 4 1/2" 4 1/2" 1 1/2" 1 1/2" 3" 3/4"Øx4" HWS @ 2" DECK
