Structural · S-9RHVX

Steel Column Base Plate and Foundation Detail at Tilt-Up Wall

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Base Plate / Anchorage Rebar Splice / Development Embed Plate

About this detail

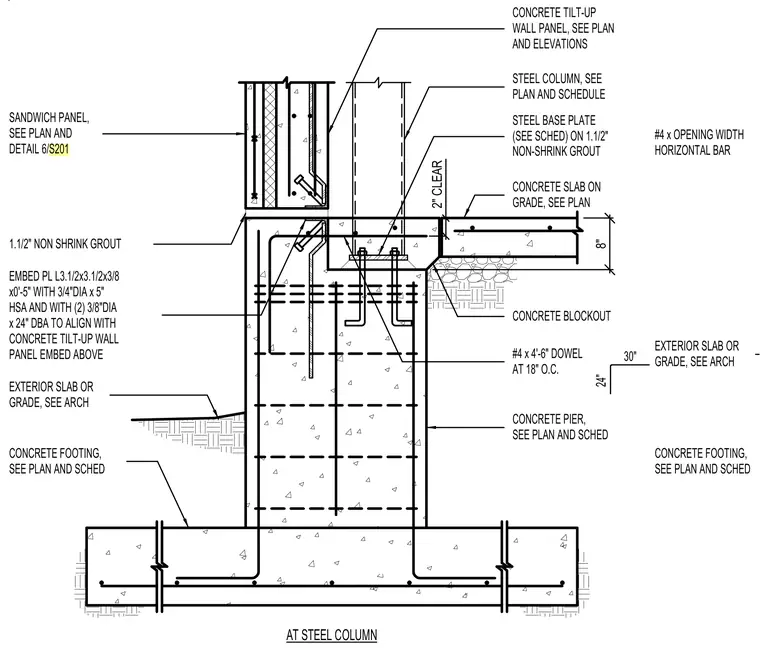

A steel column is supported by a steel base plate set on one and a half inches of non-shrink grout over a concrete pier and footing. The concrete pier is anchored to the continuous concrete footing below and features embedded dowels including number four bars at eighteen inches on center. A concrete slab on grade bears adjacent to the pier with a two-inch clear spacing. Above, a concrete tilt-up wall panel connects via an embed plate measuring three and one-half by three and one-half by three-eighths inches by five inches long with a three-quarter-inch diameter by five-inch head stud anchor and two three-eighths-inch diameter by twenty-four-inch deformed bar anchors aligning with the wall panel embed.
