A concrete topping slab is cast over a profiled metal deck with transverse reinforcing bars positioned at the top and bottom. Center reinforcing bars are centered in the deck flutes with a three-quarter inch clearance maintained throughout. Diaphragm reinforcing is provided where required per plan, with specific thicknesses dimensioned for both the topping and the deck.

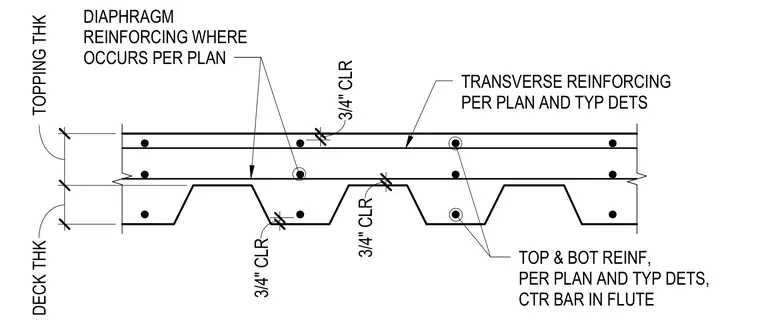

TRANSVERSE REINFORCING PER PLAN AND TYP DETS TOP & BOT REINF, PER PLAN AND TYP DETS, CTR BAR IN FLUTE 3/4" CLR 3/4" CLR 3/4" CLR DIAPHRAGM REINFORCING WHERE OCCURS PER PLAN 4 1/2" THK TOPPING TOPPING THK DECK THK
