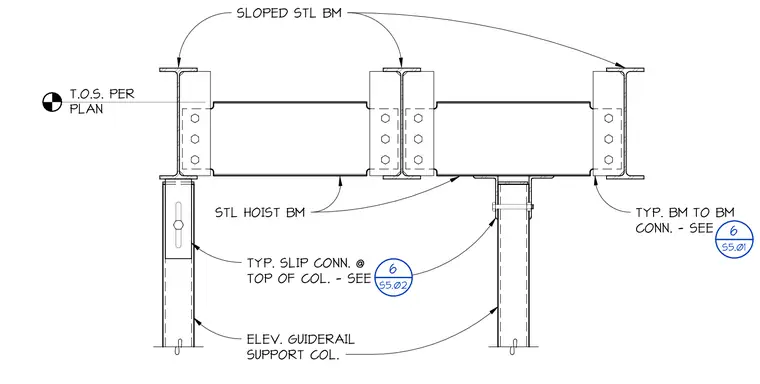

Sloped steel beams and steel hoist beams connect to elevator guiderail support columns with typical beam-to-beam connections per detail 6 on sheet S5.01. A typical slip connection is detailed at the top of the column per detail 6 on sheet S5.02. The top of steel elevation is established per plan.
T.O.S. PER PLAN SLOPED STL BM STL HOIST BM TYP. BM TO BM CONN. - SEE 6 S5.01 TYP. SLIP CONN. @ TOP OF COL. - SEE 6 S5.02 ELEV. GUIDERAIL SUPPORT COL.
