Structural · S-9RDQX

Typical Column Base Plate Plan Detail at Edge Condition

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Connections / Plates

Connections

Base Plate / Anchorage

About this detail

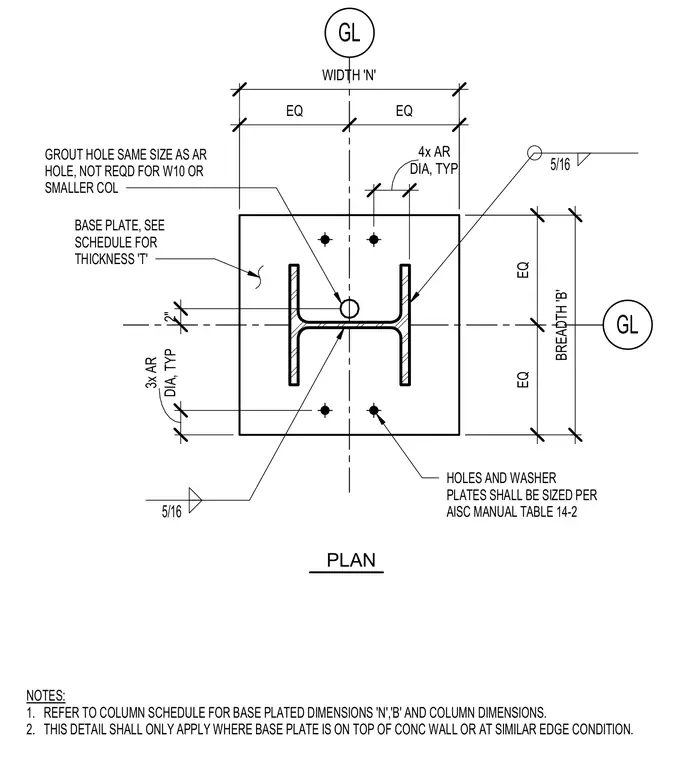

A structural detail of a column base plate plan layout positioned on top of a concrete wall or similar edge condition, with dimensions and plate sizes referenced from the column schedule. Four anchor rod holes are symmetrically spaced with equal dimensions on each grid line axis, accompanied by a central grout hole of the same size as the anchor rod hole that is omitted for wide flange sections W10 or smaller. The steel column flange connects to the base plate using five-sixteenths inch fillet welds on typical sides. Anchor holes and washer plates are sized in accordance with AISC Manual Table fourteen dash two.
