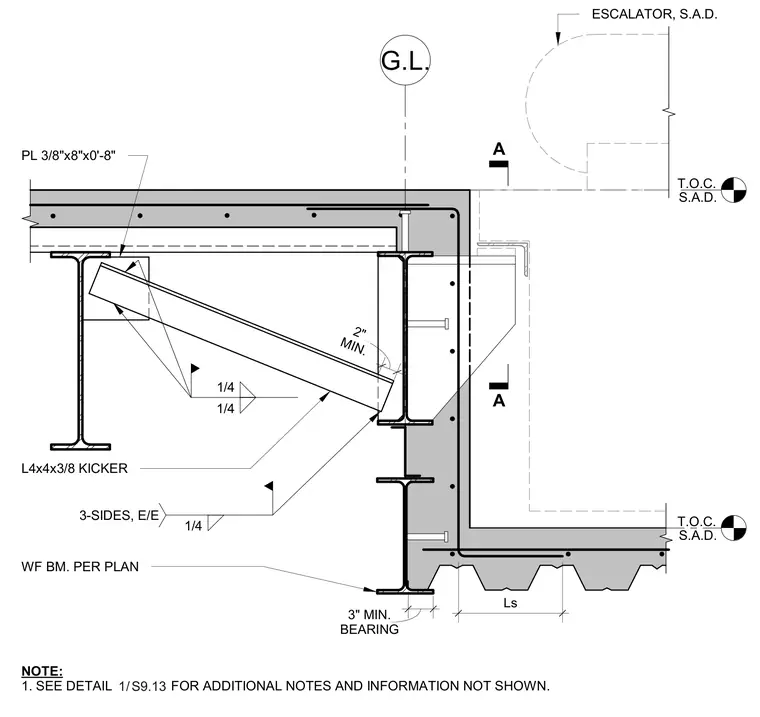

An L4x4x3/8 structural angle kicker brace connects between a wide flange beam and a three-eighths-inch thick gusset plate welded with one-quarter-inch fillet welds on three sides, each edge. The wide flange beams are sized per plan and provide support to the reinforced concrete pit slab and metal deck assembly. A minimum three-inch bearing is maintained.
WF BM. PER PLAN ESCALATOR, S.A.D. T.O.C. S.A.D. G.L. T.O.C. S.A.D. Ls BEARING 3" MIN. NOTE: 1. SEE DETAIL FOR ADDITIONAL NOTES AND INFORMATION NOT SHOWN. / 1 S9.13 1/4 1/4 L4x4x3/8 KICKER PL 3/8"x8"x0'-8" 3-SIDES, E/E 1/4 MIN. 2" A A
