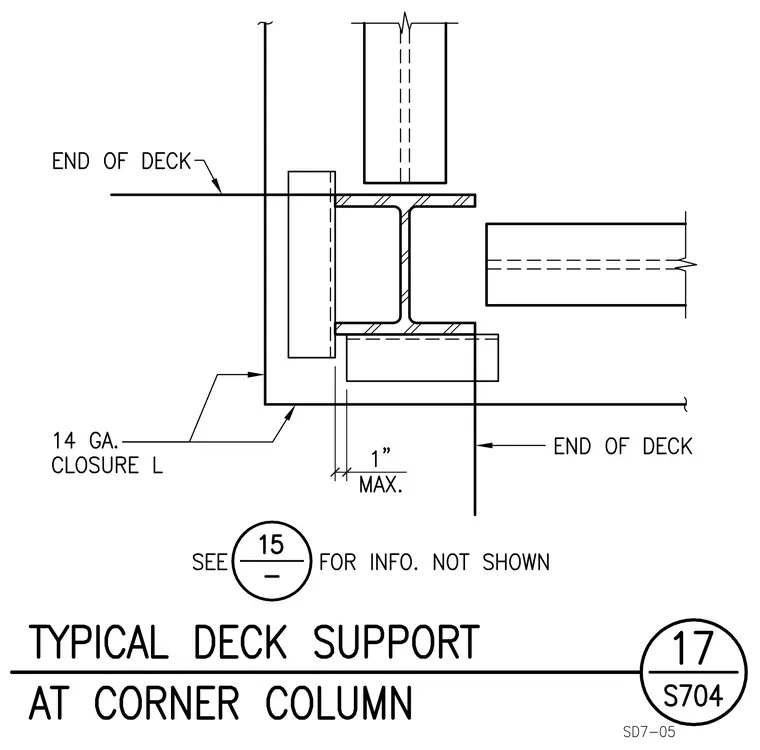

A metal deck bears on a structural steel corner column assembly with a fourteen-gauge closure angle. The deck terminates at the column flange face with a one-inch maximum clearance dimension. A reference bubble directs the user to detail fifteen on the same or another sheet for additional information.
