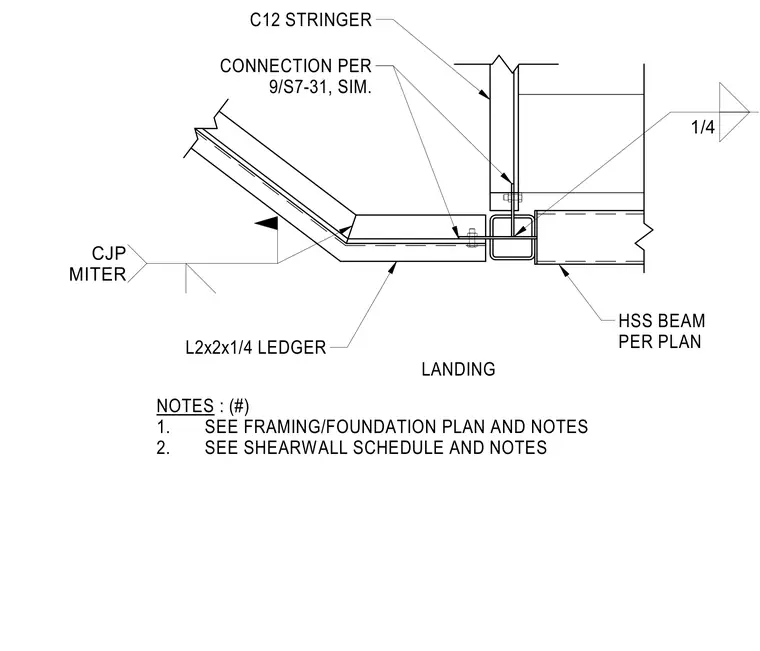

A C12 channel stringer frames into a hollow structural section column at a stair landing, supported by an L2x2x1/4 angle ledger. The corner joint features a complete joint penetration miter weld. The stringer connects to the support with bolted hardware detailed on a separate sheet.
CJP MITER 1/4 NOTES : (#) 1. SEE FRAMING/FOUNDATION PLAN AND NOTES 2. SEE SHEARWALL SCHEDULE AND NOTES LANDING HSS BEAM PER PLAN CONNECTION PER 9/S7-31, SIM. C12 STRINGER L2x2x1/4 LEDGER
