Typical Curtain Wall Attachment at Roof

Materials

Timber / Wood Metal (misc.)

Elements

Beams Walls Curtain Walls Roofs Decks Arches Connections / Plates

Connections

Deck Attachment

About this detail

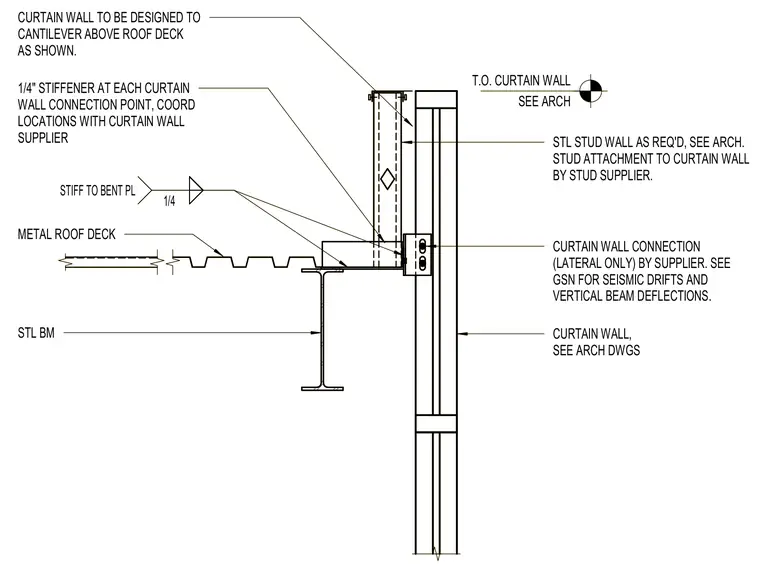

Lateral connection of a curtain wall to a steel roof framing assembly, featuring a steel beam supporting a metal roof deck. A one-quarter-inch stiffener plate is welded to the steel beam at each curtain wall connection point using a one-quarter-inch fillet weld. The curtain wall is designed to cantilever above the roof deck, with a bent plate welded to a steel stud wall as required. The lateral curtain wall connection is provided by the supplier, with locations coordinated in the field. Seismic drifts and vertical beam deflections must be checked per general structural notes.
