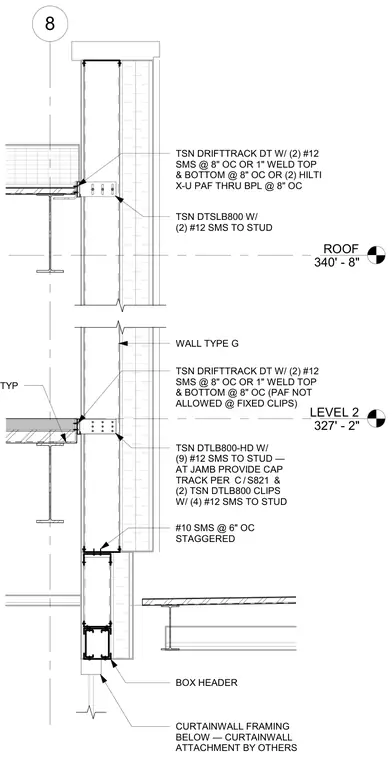

Vertical wall framing assembly for Wall Type G connects to structural steel framing at Level 2 and roof levels. Cold-formed steel studs interface with a slip track utilizing a drift track fastened with self-tapping metal screws, welds, or powder-actuated fasteners depending on the fixed or drift condition. Heavy-duty deflection clips and slip clips secure the studs to the structural frame while accommodating vertical deflection and lateral drift. A boxed header frames the opening above the curtainwall interface, secured with staggered self-tapping screws. The curtainwall framing below is provided by others.
8 LEVEL 2 327' - 2" ROOF 340' - 8" TSN DTLB800-HD W/ (9) #12 SMS TO STUD — AT JAMB PROVIDE CAP TRACK PER & (2) TSN DTLB800 CLIPS W/ (4) #12 SMS TO STUD WALL TYPE G TSN DTSLB800 W/ (2) #12 SMS TO STUD TSN DRIFTTRACK DT W/ (2) #12 SMS @ 8" OC OR 1" WELD TOP & BOTTOM @ 8" OC OR (2) HILTI X-U PAF THRU BPL @ 8" OC 5/16" BPL TYP / C S821 CURTAINWALL FRAMING BELOW — CURTAINWALL ATTACHMENT BY OTHERS #10 SMS @ 6" OC STAGGERED BOX HEADER TSN DRIFTTRACK DT W/ (2) #12 SMS @ 8" OC OR 1" WELD TOP & BOTTOM @ 8" OC (PAF NOT ALLOWED @ FIXED CLIPS)
