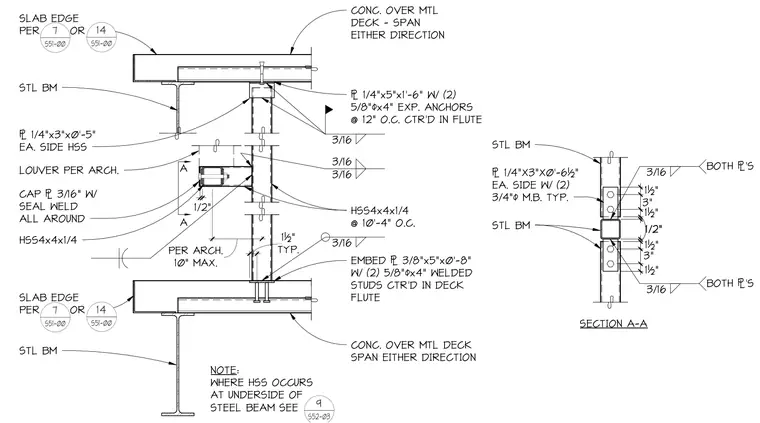

An HSS4x4x1/4 hollow structural section column spans between upper and lower structural steel beams supporting concrete over metal deck slabs. The top of the HSS column connects to a quarter-inch by five-inch by one-foot-six-inch plate secured with two five-eighths-inch by four-inch expansion anchors centered in the deck flute, joined with three-sixteenths-inch fillet welds. The bottom of the column attaches via a three-eighths-inch by five-inch by zero-foot-eight-inch embed plate with two five-eighths-inch by four-inch welded studs centered in the deck flute. An intermediate HSS louver support framing member connects to the main column using quarter-inch by three-inch plates on each side with three-sixteenths-inch fillet welds, featuring a three-sixteenths-inch cap plate with a seal weld all around. Section A-A details the vertical splice configuration utilizing quarter-inch by three-inch by zero-foot-six-and-a-half-inch plates on each side with two three-quarter-inch machine bolts typical on both plates and three-sixteenths-inch fillet welds.
CONC. OVER MTL DECK - SPAN EITHER DIRECTION 1/2" PER ARCH. 10" MAX. TYP. 1½" & 1/4"x5"x1'-6" W/ (2) 5/8"(x4" EXP. ANCHORS @ 12" O.C. CTR'D IN FLUTE HSS4x4x1/4 @ 10'-4" O.C. EMBED & 3/8"x5"x0'-8" W/ (2) 5/8"(x4" WELDED STUDS CTR'D IN DECK FLUTE CONC. OVER MTL DECK SPAN EITHER DIRECTION SLAB EDGE PER OR 7 S51-00 14 S51-00 STL BM & 1/4"x3"x0'-5" EA. SIDE HSS LOUVER PER ARCH. CAP & 3/16" W/ SEAL WELD ALL AROUND HSS4x4x1/4 SLAB EDGE PER OR 7 S51-00 14 S51-00 STL BM NOTE: WHERE HSS OCCURS AT UNDERSIDE OF STEEL BEAM SEE 9 S52-03 A A 3/16 3/16 3/16 3/16 SECTION A-A STL BM STL BM 1/2" 1½" 3" 1½" 1½" 3" 1½" 1/2" & 1/4"X3"X0'-6½" EA. SIDE W/ (2) 3/4"( M.B. TYP. 3/16 BOTH &'S 3/16 BOTH &'S
