Antenna Farm Post Connection Detail

Materials

Elements

Columns Beams Roofs Arches Connections / Plates

About this detail

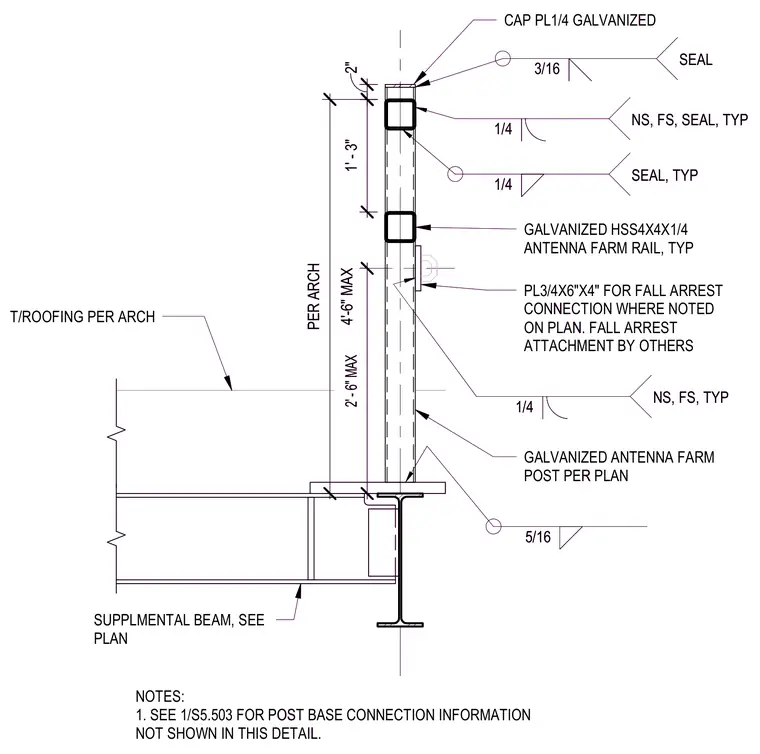

A galvanized antenna farm post per plan extends upward from a supplemental steel beam, sized per plan, with a five-sixteenths-inch fillet weld at the base connection. Galvanized HSS four-by-four-by-one-quarter-inch antenna farm rails attach to the post with one-quarter-inch fillet welds, noted as near side, far side, typical, with sealant applied typically. A three-quarter-by-six-by-four-inch plate for fall arrest connection is provided where noted on plan, with fall arrest attachment by others. A one-quarter-inch galvanized cap plate seals the top of the post with a three-sixteenths-inch seal weld. Note 1 directs to detail 1 on sheet S5.503 for post base connection information not shown in this detail.
