Structural · S-9PRPQ

Post-Tensioned Concrete Edge of Slab at Perimeter Beam

Materials

Concrete

Elements

Beams Floors / Slabs Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

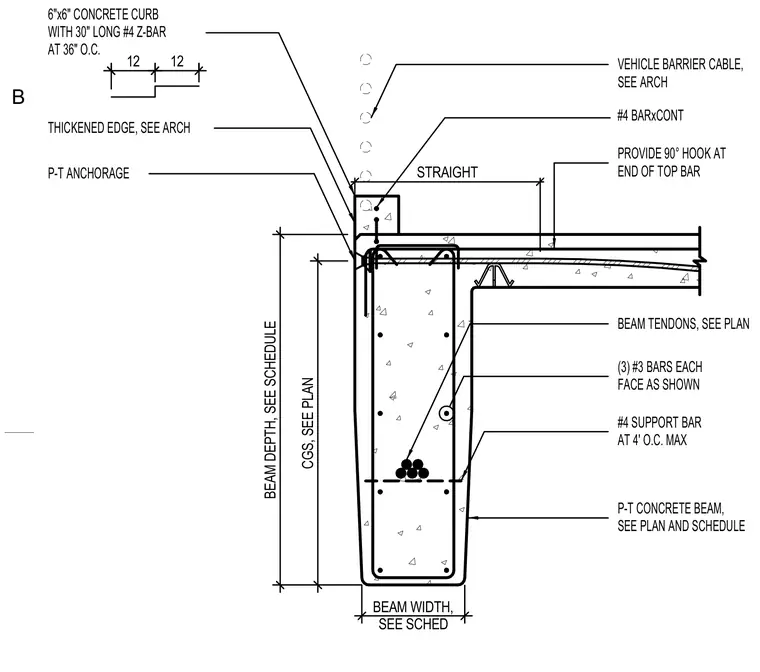

A post-tensioned concrete slab edge bears on a post-tensioned concrete perimeter beam. The beam features continuous bottom support bars spaced at a maximum of four feet on center, three number three bars on each face, and internal post-tensioning tendons located per plan. A cast-in-place concrete curb sits atop the slab edge, reinforced with thirty-inch-long number four z-bars at thirty-six inches on center. Vehicle barrier cables are anchored along the exterior face of the curb as indicated by architectural drawings. The top of the slab includes continuous number four reinforcing bars with ninety-degree hooks at the termination points.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
