Structural · S-9PRME

HSS Beam to HSS Column Welded Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

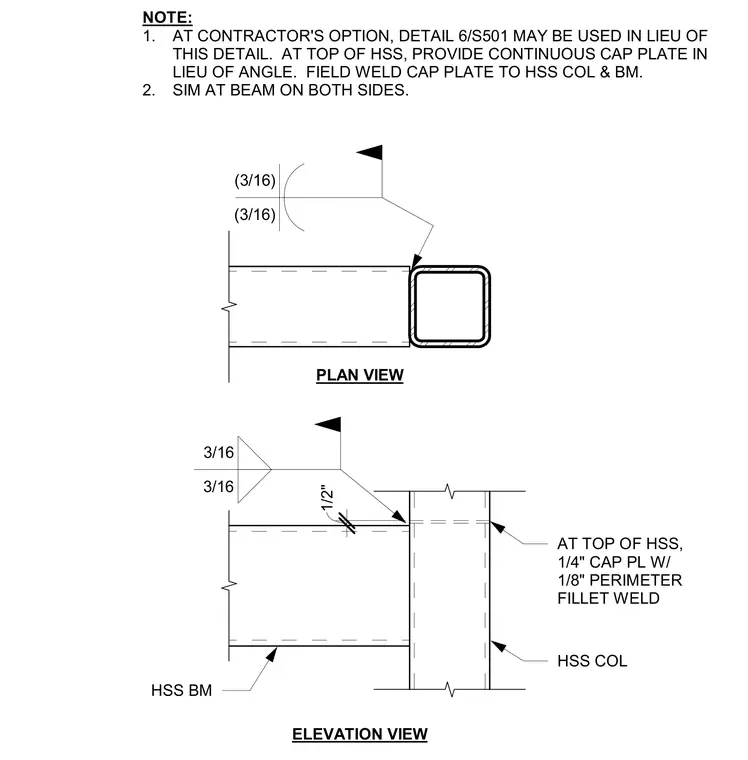

A hollow structural section beam frames into a hollow structural section column with three-sixteenths inch welds, featuring a one-half inch clearance gap. At the top of the hollow structural section, a one-quarter inch continuous cap plate connects with a one-eighth inch perimeter fillet weld. A note permits using an alternate detail at the contractor's option, requiring a continuous cap plate in lieu of an angle, field welded to both the hollow structural section column and beam. The connection is symmetrical at the beam on both sides.
