Structural · S-9PED9

Housekeeping Pad Detail

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

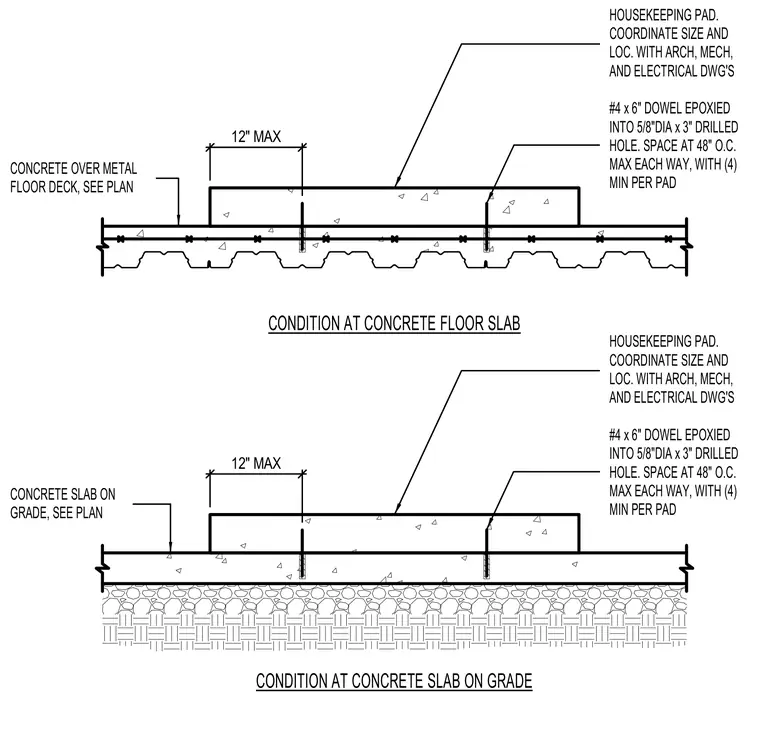

Concrete housekeeping pads are anchored to a concrete slab on grade or a concrete topping over a metal floor deck, with dimensions and locations coordinated across architectural, mechanical, and electrical drawings. Number four reinforcing dowels measuring six inches in length are epoxied into five-eighths-inch diameter by three-inch drilled holes spaced at forty-eight inches on center maximum each way, with a minimum of four dowels per pad and a maximum twelve-inch edge distance.
