A supported steel beam framing into a supporting beam at an angle up to forty-five degrees maximum. A full-depth shear cleat connects the two members with fillet welds provided on each side all around. The shear cleat width is increased by twenty millimeters to accommodate the skew. Bolts secure the connection through the cleat web.

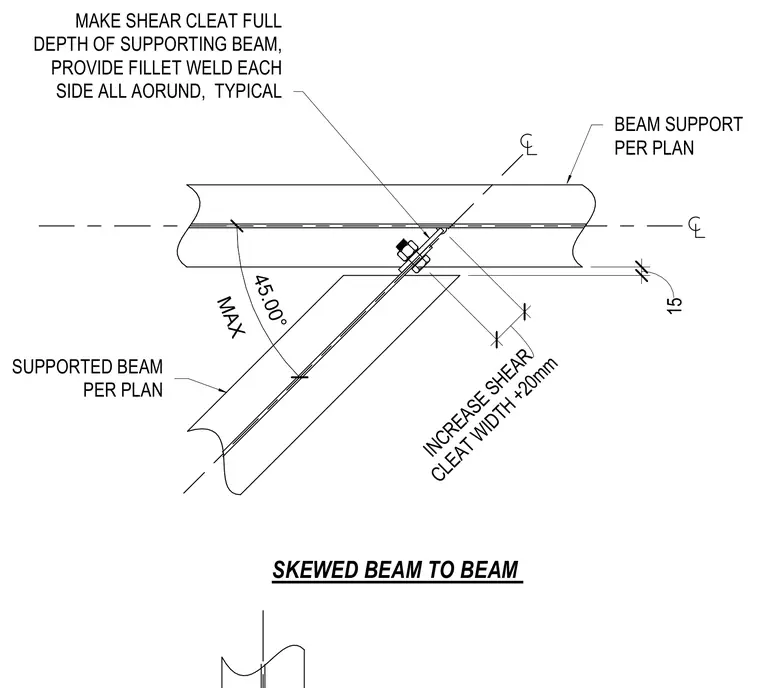

SKEWED BEAM TO BEAM SUPPORTED BEAM PER PLAN MAX 45.00° CLEAT WIDTH +20mm INCREASE SHEAR MAKE SHEAR CLEAT FULL DEPTH OF SUPPORTING BEAM, PROVIDE FILLET WELD EACH SIDE ALL AORUND, TYPICAL BEAM SUPPORT PER PLAN 15
