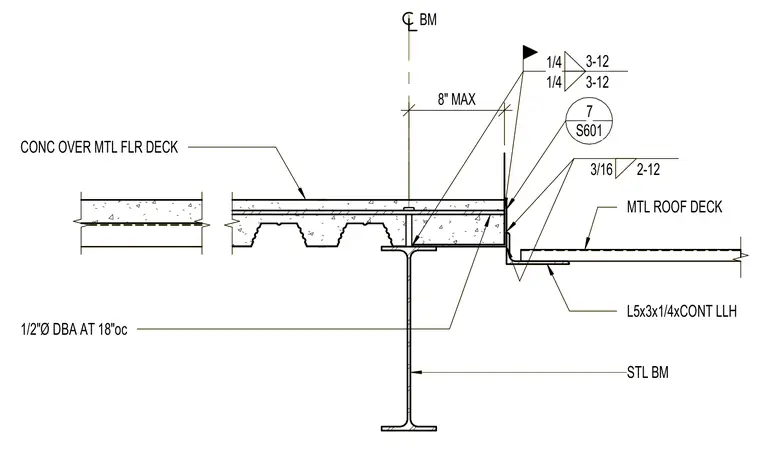

A continuous L5x3x1/4 angle supports the metal roof deck adjacent to a steel beam carrying concrete over a metal floor deck. The metal roof deck bears on the continuous angle with a 3/16-inch fillet weld at 12 inches on center. The concrete floor deck is secured to the supporting steel beam with 1/2-inch diameter deck bridge anchors spaced at 18 inches on center. A vertical leg extends upward from the angle with a 1/4-inch fillet weld at 12 inches on center.
STL BM 3/16 2-12 BM MTL ROOF DECK L5x3x1/4xCONT LLH 8" MAX CONC OVER MTL FLR DECK 1/2"Ø DBA AT 18"oc 1/4 3-12 1/4 3-12 S601 7 STL BM 3/16 2-12 BM MTL ROOF DECK L5x3x1/4xCONT LLH 8" MAX CONC OVER MTL FLR DECK 1/2"Ø DBA AT 18"oc 1/4 3-12 1/4 3-12 S601 7
