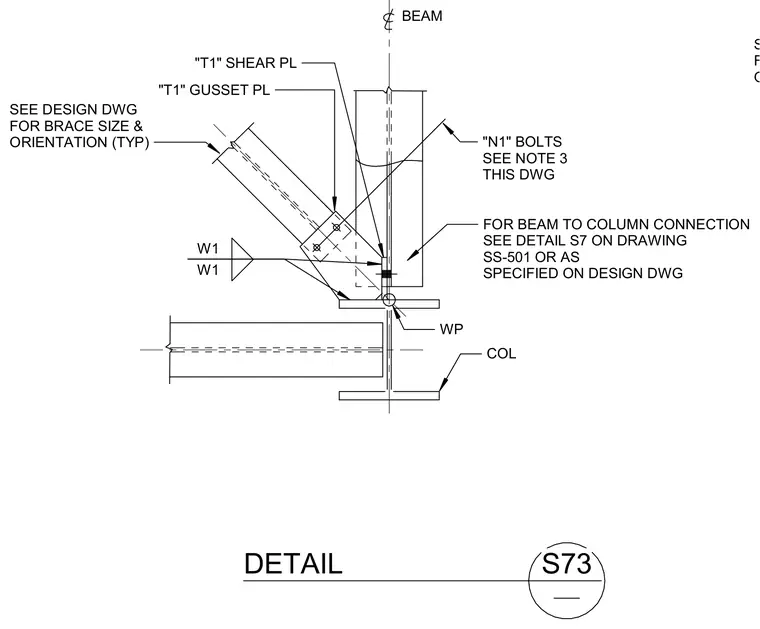

A structural steel brace connects to a column and beam intersection using a gusset plate and shear plate. The brace size and orientation are sized per the design drawings, secured with N1 bolts referenced in drawing notes. A T1 shear plate connects the beam to the column, with weld symbols W1 indicating the weld sizes. The work point WP establishes the geometric alignment for the framing members.
BEAM COL WP "T1" GUSSET PL "T1" SHEAR PL W1 W1 SEE DESIGN DWG FOR BRACE SIZE & ORIENTATION (TYP) DETAIL S73 "N1" BOLTS SEE NOTE 3 THIS DWG FOR BEAM TO COLUMN CONNECTION SEE DETAIL S7 ON DRAWING SS-501 OR AS SPECIFIED ON DESIGN DWG SEE DESIGN DWG FOR BRACE SIZE & ORIENTATION (TYP)
