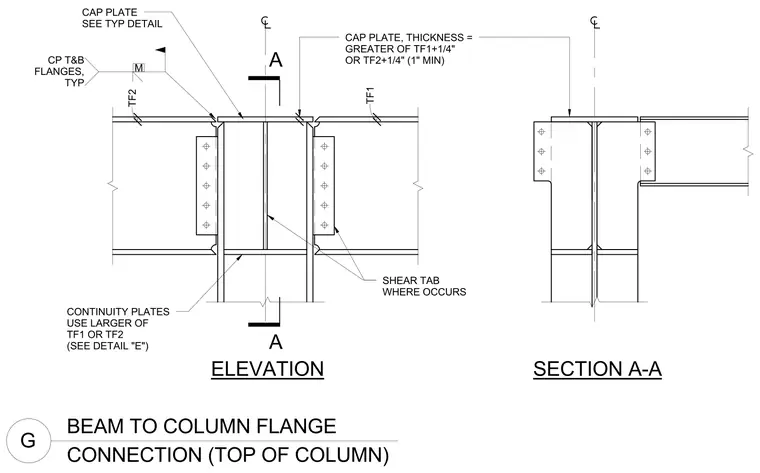

The steel beam connects to the column flange using a shear tab where required, supplemented by a top cap plate and internal continuity plates. The cap plate thickness is specified as the greater of flange thickness one plus one-quarter inch or flange thickness two plus one-quarter inch, with a one-inch minimum. Continuity plates are sized using the larger of flange thickness one or flange thickness two per detail E. Welds tie the cap plate to the top and bottom flanges typically.
A A BEAM TO COLUMN FLANGE G CONNECTION (TOP OF COLUMN) SECTION A-A ELEVATION CONTINUITY PLATES USE LARGER OF TF1 OR TF2 (SEE DETAIL "E") CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN) TF2 TF1 . CP T&B FLANGES, TYP M CAP PLATE SEE TYP DETAIL SHEAR TAB WHERE OCCURS
