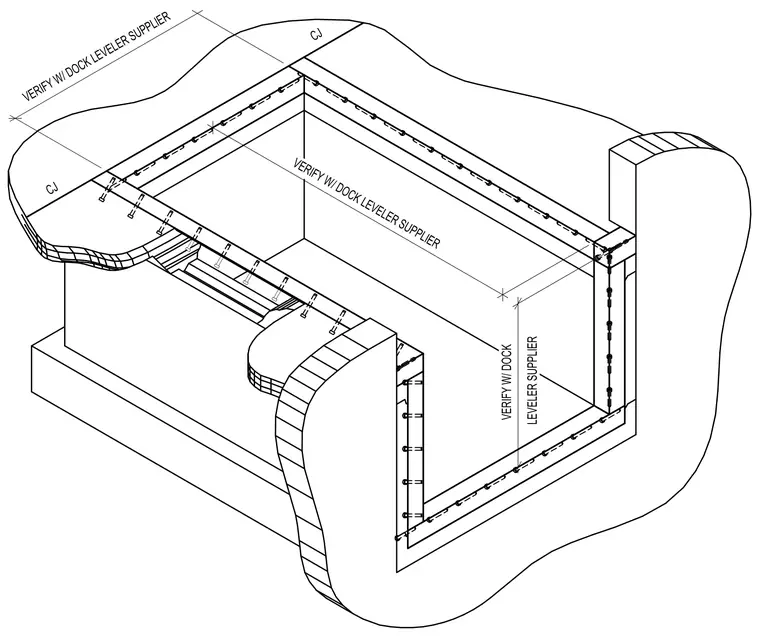

An isometric view of a recessed loading dock leveler pit shows the perimeter framing, edge angles, and surrounding concrete slab. Control joints are located at the slab transitions as indicated. Dimensions and clearances are to be verified with the dock leveler supplier.
CJ CJ VERIFY W/ DOCK LEVELER SUPPLIER VERIFY W/ DOCK LEVELER SUPPLIER VERIFY W/ DOCK LEVELER SUPPLIER
