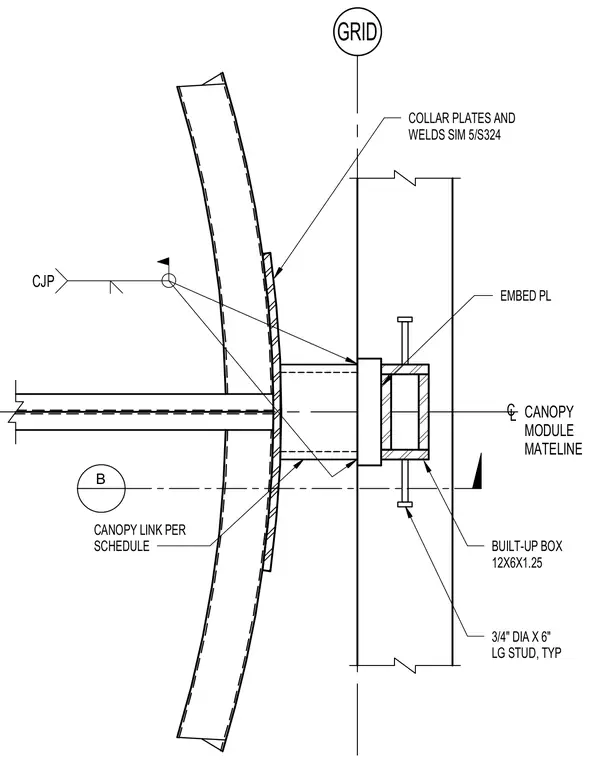

A built-up box section measuring 12x6x1.25 acts as the structural support, anchored by three-quarter-inch diameter by six-inch long studs welded typically to the embedded plate. A canopy link per schedule connects to the support with complete joint penetration welds. Collar plates and associated welds match detail 5/S324 along the curved canopy module mateline at the grid line.
GRID C L CANOPY MODULE MATELINE CANOPY LINK PER SCHEDULE B CJP EMBED PL BUILT-UP BOX 12X6X1.25 3/4" DIA X 6" LG STUD, TYP COLLAR PLATES AND WELDS SIM 5/S324
