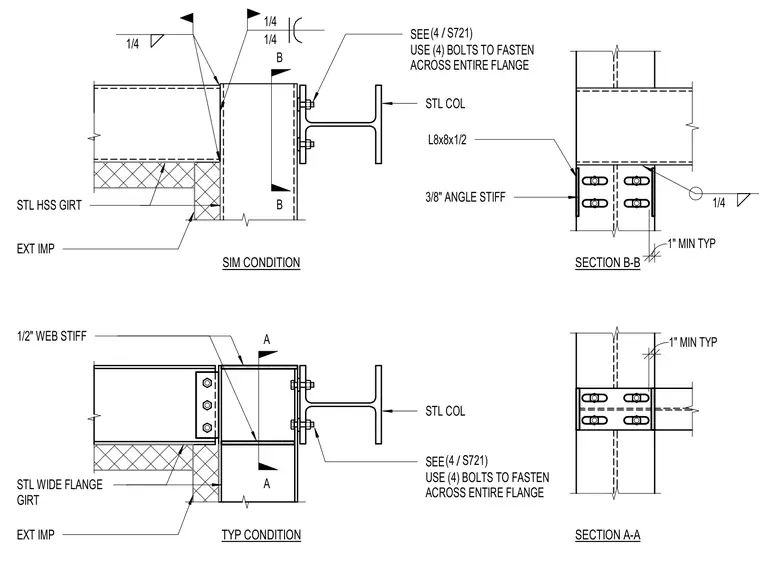

A steel hollow structural section or wide flange wind girt frames into a steel column at a reentrant corner condition. The connection incorporates a structural angle with three-eighths inch angle stiffeners and a one-half inch web stiffener plate welded with one-quarter inch fillet welds. Four bolts fasten the connection across the entire flange to the steel column. Exterior insulation continuous past the assembly provides thermal continuity.
A A B B TYP CONDITION SIM CONDITION STL HSS GIRT EXT IMP STL COL SEE USE (4) BOLTS TO FASTEN ACROSS ENTIRE FLANGE / (4 S721) 1/2" WEB STIFF EXT IMP STL WIDE FLANGE GIRT STL COL SEE USE (4) BOLTS TO FASTEN ACROSS ENTIRE FLANGE / (4 S721) 1/4 1/4 1/4 SECTION A-A SECTION B-B 3/8" ANGLE STIFF L8x8x1/2 1" MIN TYP 1" MIN TYP 1/4
