A wide flange steel column or embedment is anchored directly into a concrete mat foundation at grid line 12. Four 3/4-inch diameter by 6-inch long headed studs are welded to the embedded member at 8-inch spacing. Mat edge reinforcement is installed per structural plans. Local thickening of the mat foundation is permitted as required for temporary base plate conditions.

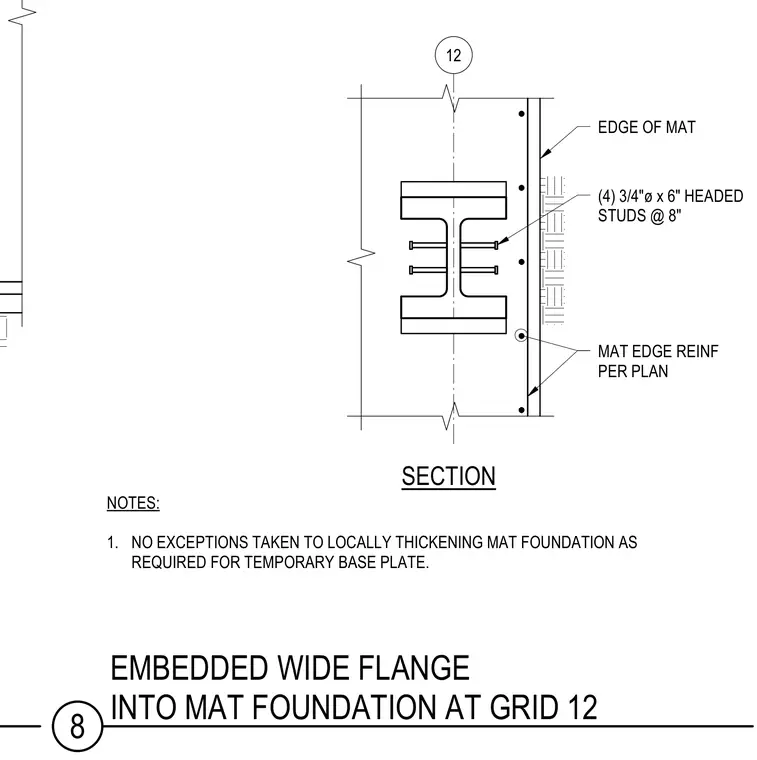

NOTES: 1. NO EXCEPTIONS TAKEN TO LOCALLY THICKENING MAT FOUNDATION AS REQUIRED FOR TEMPORARY BASE PLATE. 12 EDGE OF MAT (4) 3/4"ø x 6" HEADED STUDS @ 8" MAT EDGE REINF PER PLAN SECTION 8 EMBEDDED WIDE FLANGE INTO MAT FOUNDATION AT GRID 12
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
