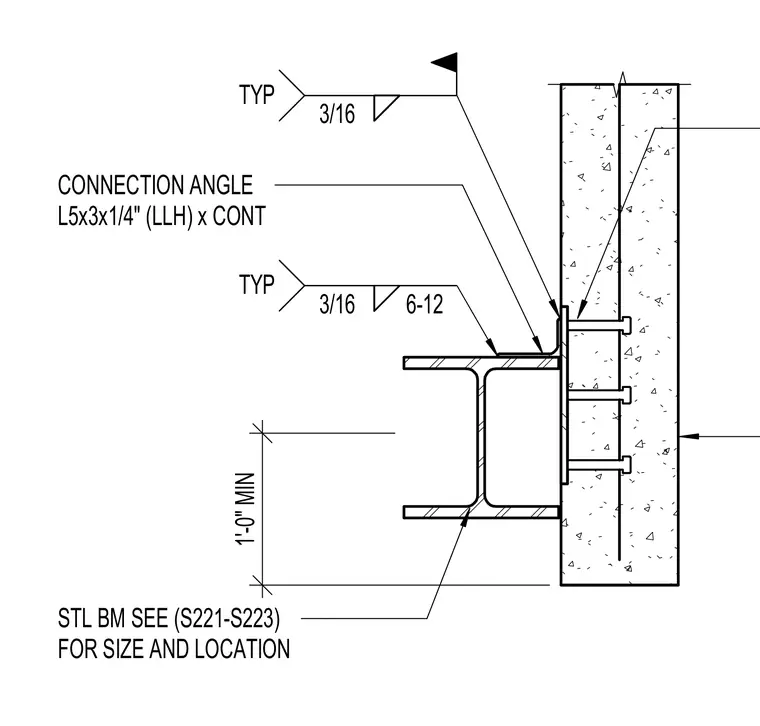

A structural steel wind girt connects to a tilt-up concrete wall panel using a continuous connection angle of L5x3x1/4-inch section with long leg horizontal. The angle is welded to the steel beam with a three-sixteenth-inch fillet weld at six inches on center alternating with twelve inches. A three-sixteenth-inch fillet weld secures the angle to the embedded plate within the concrete panel. The steel beam size and location are referenced per structural sheets S221 through S223.
STL BM SEE (S221-S223) FOR SIZE AND LOCATION CONNECTION ANGLE L5x3x1/4" (LLH) x CONT 1'-0" MIN 3/16 6-12 TYP 3/16 TYP
