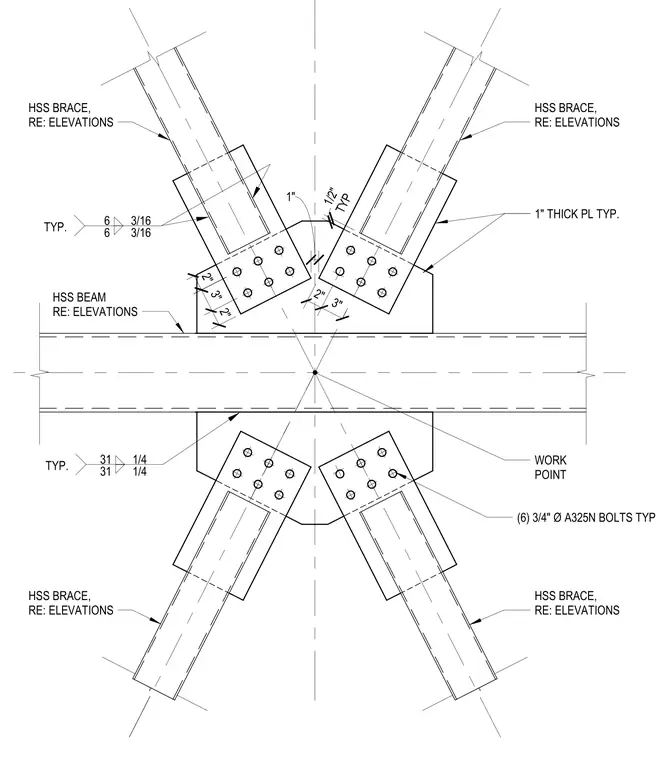

This connection utilizes a one-inch thick gusset plate welded to a horizontal hollow structural section beam to serve as the primary junction for four diagonal hollow structural section braces. Each brace is connected to the gusset plate using six three-quarter-inch diameter A325N bolts arranged in a standard pattern. The gusset plate is secured to the beam with three-sixteenth-inch fillet welds on both sides, while the braces are attached to the gusset with one-quarter-inch fillet welds. All bolt holes are spaced at two-inch and three-inch intervals to maintain proper edge distances and clearances from the central work point. The assembly is designed to transfer lateral loads through the gusset plate into the beam member.
Text on the drawing
HSS BEAM RE: ELEVATIONS (3) 3/4" A325N BOLTS 1/4 1/4 TYP 1/2" 3" 2" 3" 2" 2" WORK POINT (6) 3/4" Ø A325N BOLTS TYP 1" THICK PL TYP. HSS BRACE, RE: ELEVATIONS HSS BEAM RE: ELEVATIONS 6 3/16 6 3/16 TYP. HSS BRACE, RE: ELEVATIONS HSS BRACE, RE: ELEVATIONS HSS BRACE, RE: ELEVATIONS 31 1/4 31 1/4 TYP. 1"
