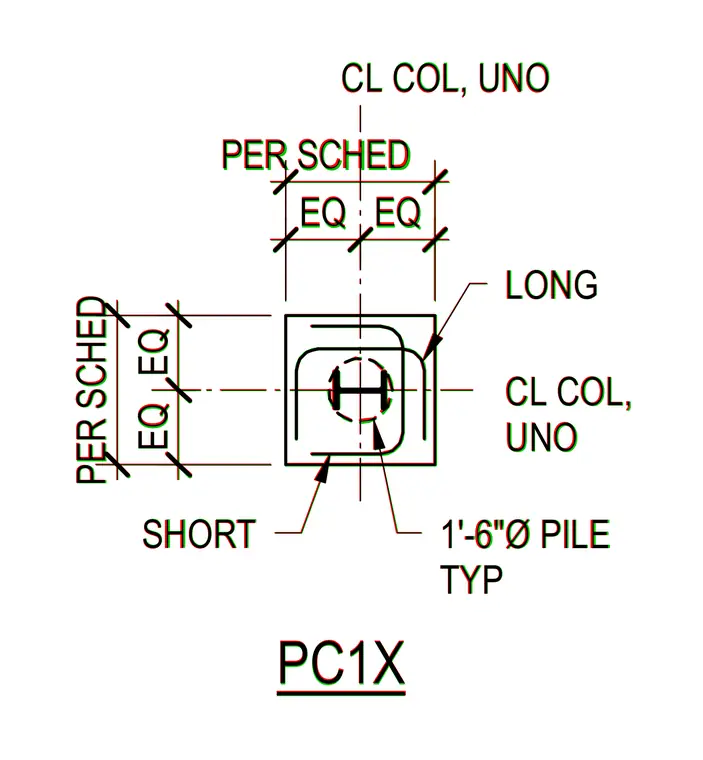

A square concrete pile cap centers on a one-foot-six-inch diameter typical pile. The foundation includes long and short reinforcing bars spaced symmetrically around the column centerline as scheduled. A steel column aligns with the centerlines of the pile and pile cap unless noted otherwise.
PC1X CL COL, UNO CL COL, UNO PER SCHED EQ EQ EQ EQ PER SCHED 1'-6"Ø PILE TYP SHORT LONG PC1X CL COL, UNO CL COL, UNO PER SCHED EQ EQ EQ EQ PER SCHED 1'-6"Ø PILE TYP SHORT LONG
