Structural · S-9MDQ5

Typical Sump Pit Slab Detail

Elements

About this detail

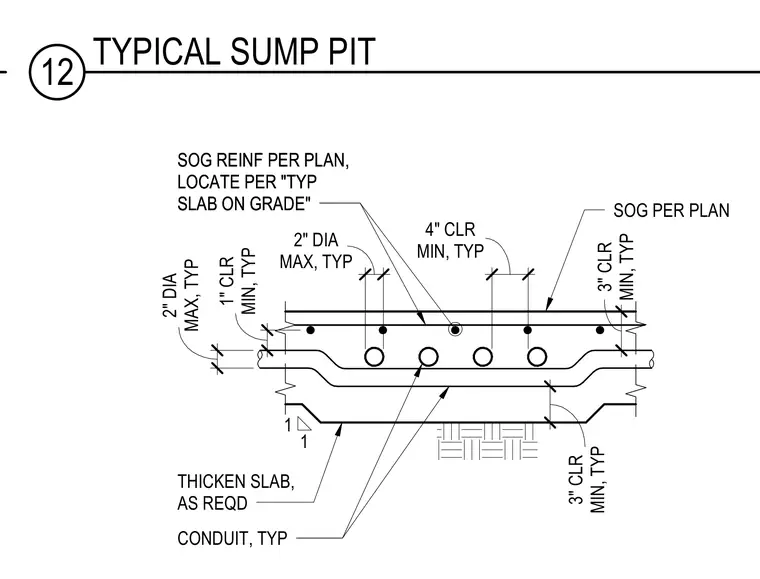

A typical sump pit within a slab on grade features thickened concrete and embedded conduit runs. The slab includes designated reinforcement placed per structural plans with specified clearances. Conduit runs have a maximum diameter of two inches with typical minimum clearances of one inch, three inches, and four inches maintained. The concrete slab thickens as required around the pit assembly resting on compacted subgrade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
